CLI example: Using vSystems for enterprise network isolation (only the default vSystem has public network interfaces)

Network configuration

As shown in Figure 1:

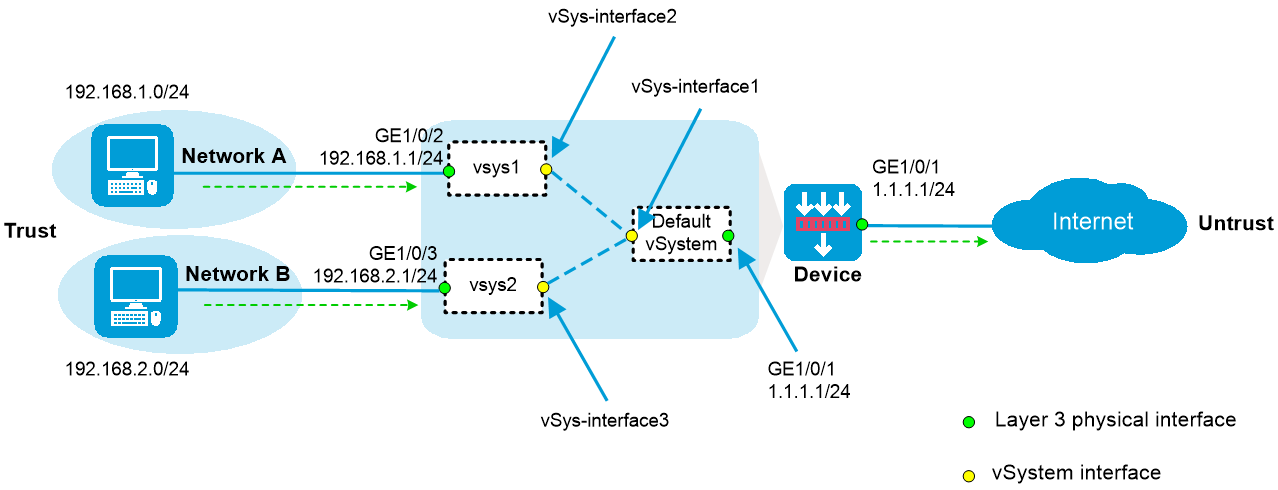

Figure 1 Network diagram

Software versions used

This configuration example was created and verified on F9900 of the F5000-AI120 device.

Procedures

Configuring the default vSystem

1.        Create vSystems and assign interfaces to the vSystems:

# Create vSystem vsys1 and configure a description for the vSystem.

<Device> system-view

[Device] vsys vsys1

[Device-vsys-2-vsys1] description vsys-1

# Assign interface GigabitEthernet 1/0/2 to vSystem vsys1.

[Device-vsys-2-vsys1] allocate interface gigabitethernet 1/0/2

Some configurations on the interface are removed.

[Device-vsys-2-vsys1] quit

# Create vSystem vsys2 and configure a description for the vSystem.

[Device] vsys vsys2

[Device-vsys-3-vsys2] description vsys-2

# Assign interface GigabitEthernet 1/0/3 to vSystem vsys2.

[Device-vsys-3-vsys2] allocate interface gigabitethernet 1/0/3

Some configurations on the interface are removed.

[Device-vsys-3-vsys2] quit

2.        Assign IP addresses to interfaces and add interfaces to security zones:

# Assign IP addresses to interfaces.

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] ip address 1.1.1.1 24

[Device-GigabitEthernet1/0/1] quit

# Add interfaces to security zones.

[Device] security-zone name trust

[Device-security-zone-Trust] import interface vsys-interface 1

[Device-security-zone-Trust] quit

[Device] security-zone name untrust

[Device-security-zone-Untrust] import interface gigabitethernet 1/0/1

[Device-security-zone-Untrust] quit

3.        Configure settings for routing. This example configures a static route. In the route, the next hop IP address is 1.1.1.2 for internal users to access the Internet through the default vSystem.

[Device] ip route-static 0.0.0.0 0 1.1.1.2

4.        Configure a rule named trust-untrust in the IPv4 security policy to allow internal users to access the Internet.

[Device] security-policy ip

[Device-security-policy-ip] rule name trust-untrust

[Device-security-policy-ip-1-trust-untrust] source-zone trust

[Device-security-policy-ip-1-trust-untrust] destination-zone untrust

[Device-security-policy-ip-1-trust-untrust] source-ip-subnet 192.168.1.128 25

[Device-security-policy-ip-1-trust-untrust] source-ip-subnet 192.168.2.0 24

[Device-security-policy-ip-1-trust-untrust] action pass

[Device-security-policy-ip-1-trust-untrust] quit

[Device-security-policy-ip] quit

5.        Configure NAT:

# Configure ACL 2000, and create a rule to permit the packets only from 192.168.1.128/25 and 192.168.2.0/24 to be translated.

[Device] acl basic 2000

[Device-acl-ipv4-basic-2000] rule permit source 192.168.1.128 0.0.0.127

[Device-acl-ipv4-basic-2000] rule permit source 192.168.2.0 0.0.0.255

[Device-acl-ipv4-basic-2000] quit

# Enable outbound dynamic NAT with Easy IP on interface GigabitEthernet 1/0/1 so that NAT translates the source addresses of the packets matching the ACL and destined for the Internet into the IP address of interface GigabitEthernet 1/0/1.

[Device] interface gigabitethernet 1/0/1

[Device-GigabitEthernet1/0/1] nat outbound 2000

[Device-GigabitEthernet1/0/1] quit

Configuring vSystem vsys1

1.        Log in to vSystem vsys1, assign IP addresses to interfaces, and add interfaces to security zones:

# Log in to vSystem vsys1.

[Device] switchto vsys vsys1

<Device-vsys1> system-view

# Assign IP addresses to interfaces.

[Device-vsys1] interface gigabitethernet 1/0/1

[Device-vsys1-GigabitEthernet1/0/1] ip address 192.168.1.1 24

[Device-vsys1-GigabitEthernet1/0/1] quit

# Add interfaces to security zones.

[Device-vsys1] security-zone name trust

[Device-vsys1-security-zone-Trust] import interface gigabitethernet 1/0/2

[Device-vsys1-security-zone-Trust] quit

[Device-vsys1] security-zone name untrust

[Device-vsys1-security-zone-Untrust] import interface vsys-interface 2

[Device-vsys1-security-zone-Untrust] quit

2.        Configure settings for routing. This example configures a static route. In the route, the next hop is the default vSystem for users in vSystem vsys1 to access the Internet.

[Device-vsys1] ip route-static 0.0.0.0 0 public

3.        Configure a rule named trust-untrust in the IPv4 security policy to allow users in subnet 192.168.1.128/25 to access the Internet.

[Device-vsys1] security-policy ip

[Device-vsys1-security-policy-ip] rule name trust-untrust

[Device-vsys1-security-policy-ip-1-trust-untrust] source-zone trust

[Device-vsys1-security-policy-ip-1-trust-untrust] destination-zone untrust

[Device-vsys1-security-policy-ip-1-trust-untrust] source-ip-subnet 192.168.1.128 25

[Device-vsys1-security-policy-ip-1-trust-untrust] action pass

4.        Return to the default vSystem from vSystem vsys1.

[Device-vsys1-security-policy-ip-1-trust-untrust] return

<Device-vsys1> quit

[Device]

Configuring vSystem vsys2

1.        Log in to vSystem vsys2, assign IP addresses to interfaces, and add interfaces to security zones:

# Log in to vSystem vsys2.

[Device] switchto vsys vsys2

<Device-vsys2> system-view

# Assign IP addresses to interfaces.

[Device-vsys2] interface gigabitethernet 1/0/3

[Device-vsys2-GigabitEthernet1/0/3] ip address 192.168.2.1 24

[Device-vsys2-GigabitEthernet1/0/3] quit

# Add interfaces to security zones.

[Device-vsys2] security-zone name trust

[Device-vsys2-security-zone-Trust] import interface gigabitethernet 1/0/3

[Device-vsys2-security-zone-Trust] quit

[Device-vsys2] security-zone name untrust

[Device-vsys2-security-zone-Untrust] import interface vsys-interface 3

[Device-vsys2-security-zone-Untrust] quit

2.        Configure settings for routing. This example configures a static route. In the route, the next hop is the default vSystem for users in vSystem vsys2 to access the Internet.

[Device-vsys2] ip route-static 0.0.0.0 0 public

3.        Configure a rule named trust-untrust in the IPv4 security policy to allow users in subnet 192.168.2.0/24 to access the Internet.

[Device-vsys2] security-policy ip

[Device-vsys2-security-policy-ip] rule name trust-untrust

[Device-vsys2-security-policy-ip-1-trust-untrust] source-zone trust

[Device-vsys2-security-policy-ip-1-trust-untrust] destination-zone untrust

[Device-vsys2-security-policy-ip-1-trust-untrust] source-ip-subnet 192.168.2.0 24

[Device-vsys2-security-policy-ip-1-trust-untrust] action pass

4.        Return to the default vSystem from vSystem vsys2.

[Device-vsys2-security-policy-ip-1-trust-untrust] return

<Device-vsys2> quit

[Device]

Verifying the configuration

# Verify that the vSystems are running correctly on the device. The device has three active vSystems.

[Device] display vsys



ID       Name          Status            Description

1        Admin         Active            Default

2        vsys1         Active            vsys-1

3        vsys2         Active            vsys-2

# Verify that users in subnet 192.168.1.128/25 can access the Internet.

C:\> ping 3.3.3.3

Pinging 3.3.3.3 with 32 bytes of data:

Reply from 3.3.3.3: bytes=32 time=51ms TTL=255

Reply from 3.3.3.3: bytes=32 time=44ms TTL=255

Reply from 3.3.3.3: bytes=32 time=1ms TTL=255

Reply from 3.3.3.3: bytes=32 time=1ms TTL=255

Ping statistics for 3.3.3.3:

    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

    Minimum = 1ms, Maximum = 51ms, Average = 24ms

# Verify that users in subnet 192.168.2.0/24 can access the Internet.

C:\> ping 3.3.3.3

Pinging 3.3.3.3 with 32 bytes of data:

Reply from 3.3.3.3: bytes=32 time=25ms TTL=255

Reply from 3.3.3.3: bytes=32 time=36ms TTL=255

Reply from 3.3.3.3: bytes=32 time=1ms TTL=255

Reply from 3.3.3.3: bytes=32 time=1ms TTL=255

Ping statistics for 3.3.3.3:

    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

    Minimum = 1ms, Maximum = 36ms, Average = 16ms

Configuration files

#

vsys vsys1 id 2

 description vsys-1

 allocate interface GigabitEthernet1/0/2

#

vsys vsys2 id 3

 description vsys-2

 allocate interface GigabitEthernet1/0/3

#

interface GigabitEthernet1/0/1

 ip address 1.1.1.1 255.255.255.0

 nat outbound 2000

#

interface GigabitEthernet1/0/2

 ip address 192.168.1.1 255.255.255.0

#

interface GigabitEthernet1/0/3

 ip address 192.168.2.1 255.255.255.0

#

security-zone name Trust

 import interface vSys-interface1

#

security-zone name Untrust

 import interface GigabitEthernet1/0/1

#

 ip route-static 0.0.0.0 0 1.1.1.2

#

acl basic 2000

 rule 0 permit source 192.168.1.128 0.0.0.127

 rule 5 permit source 192.168.2.0 0.0.0.255

#

security-policy ip

 rule 0 name trust-untrust

  action pass

  source-zone trust

  destination-zone untrust

  source-ip-subnet 192.168.1.128 255.255.255.128

  source-ip-subnet 192.168.2.0 255.255.255.0

#

switchto vsys vsys1

#

security-zone name Trust

 import interface GigabitEthernet1/0/2

#

security-zone name Untrust

 import interface vSys-interface2

#

 ip route-static 0.0.0.0 0 public

#

security-policy ip

 rule 0 name trust-untrust

  action pass

  source-zone trust

  destination-zone untrust

  source-ip-subnet 192.168.1.128 255.255.255.128

#

switchto vsys vsys2

#

security-zone name Trust

 import interface GigabitEthernet1/0/3

#

security-zone name Untrust

 import interface vSys-interface3

#

 ip route-static 0.0.0.0 0 public

#

security-policy ip

 rule 0 name trust-untrust

  action pass

#
