CLI example: Configuring Web access

Network configuration

As shown in Figure-1, the device acts as the SSL VPN gateway that connects the public network and private networks Network 1 and Network 2. Server A and Server B are internal Web servers. Server A uses HTTP over port 80. Server B uses HTTPS over port 443.

The device uses a CA-signed SSL server certificate. If no SSL server policy is applied to the device, the device uses a self-signed SSL server certificate.

Configure SSL VPN Web access on the device to allow the user to access Server A in Network 1 and Server B in Newark 2.

Configure the device to perform local authentication and authorization for the user.

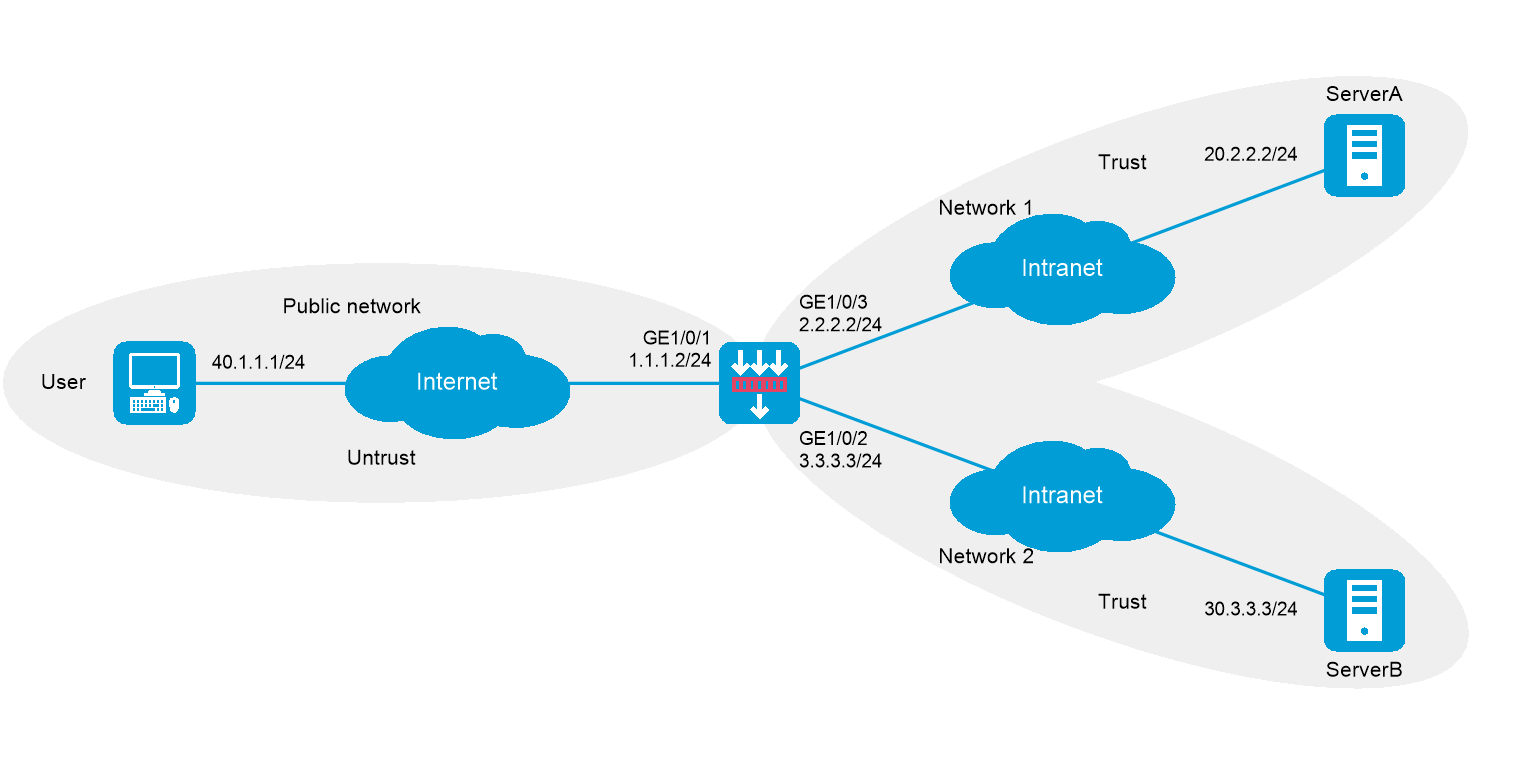

Figure-1 Network diagram

Software versions used

This configuration example was created and verified on E9900 of the F5000-AI-55-G device.

Procedures

  1. Obtain CA certificate file ca.cer and local certificate file server.pfx for the device. (Details not shown.)

  2. Assign IP addresses to interfaces:

    # Assign an IP address to interface GigabitEthernet 1/0/1.

    <Device> system-view

    [Device] interface gigabitethernet 1/0/1

    [Device-GigabitEthernet1/0/1] ip address 1.1.1.2 255.255.255.0

    [Device-GigabitEthernet1/0/1] quit

    # Assign IP addresses to other interfaces in the same way. (Details not shown.)

  3. Configure settings for routing.

    This example configures static routes, and the next hop in the routes is 2.2.2.3 to Server A, 3.3.3.4 to Server B, and 1.1.1.3 to the user.

    [Device] ip route-static 20.2.2.2 24 2.2.2.3

    [Device] ip route-static 30.3.3.3 24 3.3.3.4

    [Device] ip route-static 40.1.1.1 24 1.1.1.3

  4. Add interfaces to security zones.

    [Device] security-zone name untrust

    [Device-security-zone-Untrust] import interface gigabitethernet 1/0/1

    [Device-security-zone-Untrust] quit

    [Device] security-zone name trust

    [Device-security-zone-Trust] import interface gigabitethernet 1/0/2

    [Device-security-zone-Trust] import interface gigabitethernet 1/0/3

    [Device-security-zone-Trust] quit

  5. Configure rules in a security policy to permit the traffic between the Untrust and Local security zones for the user to access the SSL VPN gateway:

    # Configure a rule named sslvpnlocalout1 to permit the packets from the device to the user.

    [Device] security-policy ip

    [Device-security-policy-ip] rule name sslvpnlocalout1

    [Device-security-policy-ip-1-sslvpnlocalout1] source-zone local

    [Device-security-policy-ip-1-sslvpnlocalout1] destination-zone untrust

    [Device-security-policy-ip-1-sslvpnlocalout1] source-ip-host 1.1.1.2

    [Device-security-policy-ip-1-sslvpnlocalout1] destination-ip-host 40.1.1.1

    [Device-security-policy-ip-1-sslvpnlocalout1] action pass

    [Device-security-policy-ip-1-sslvpnlocalout1] quit

    # Configure a rule named sslvpnlocalin1 to permit the packets from the user to the device.

    [Device-security-policy-ip] rule name sslvpnlocalin1

    [Device-security-policy-ip-2-sslvpnlocalin1] source-zone untrust

    [Device-security-policy-ip-2-sslvpnlocalin1] destination-zone local

    [Device-security-policy-ip-2-sslvpnlocalin1] source-ip-host 40.1.1.1

    [Device-security-policy-ip-2-sslvpnlocalin1] destination-ip-host 1.1.1.2

    [Device-security-policy-ip-2-sslvpnlocalin1] action pass

    [Device-security-policy-ip-2-sslvpnlocalin1] quit

    # Configure a rule named sslvpnlocalout2 to permit the packets from the device to Server A or Server B.

    [Device-security-policy-ip] rule name sslvpnlocalout2

    [Device-security-policy-ip-3-sslvpnlocalout2] source-zone local

    [Device-security-policy-ip-3-sslvpnlocalout2] destination-zone trust

    [Device-security-policy-ip-3-sslvpnlocalout2] source-ip-host 2.2.2.2

    [Device-security-policy-ip-3-sslvpnlocalout2] source-ip-host 3.3.3.3

    [Device-security-policy-ip-3-sslvpnlocalout2] destination-ip-host 20.2.2.2

    [Device-security-policy-ip-3-sslvpnlocalout2] destination-ip-host 30.3.3.3

    [Device-security-policy-ip-3-sslvpnlocalout2] action pass

    [Device-security-policy-ip-3-sslvpnlocalout2] quit

    # Configure a rule named sslvpnlocalin2 to permit the packets from Server A and Server B to the device.

    [Device-security-policy-ip] rule name sslvpnlocalin2

    [Device-security-policy-ip-4-sslvpnlocalin2] source-zone trust

    [Device-security-policy-ip-4-sslvpnlocalin2] destination-zone local

    [Device-security-policy-ip-4-sslvpnlocalin2] source-ip-host 20.2.2.2

    [Device-security-policy-ip-4-sslvpnlocalin2] source-ip-host 30.3.3.3

    [Device-security-policy-ip-4-sslvpnlocalin2] destination-ip-host 2.2.2.2

    [Device-security-policy-ip-4-sslvpnlocalin2] destination-ip-host 3.3.3.3

    [Device-security-policy-ip-4-sslvpnlocalin2] action pass

    [Device-security-policy-ip-4-sslvpnlocalin2] quit

    [Device-security-policy-ip] quit

  6. Configure a PKI domain named sslvpn and certificate-related parameters.

    [Device] pki domain sslvpn

    [Device-pki-domain-sslvpn] public-key rsa general name sslvpn

    [Device-pki-domain-sslvpn] undo crl check enable

    [Device-pki-domain-sslvpn] quit

    [Device] pki import domain sslvpn der ca filename ca.cer

    [Device] pki import domain sslvpn p12 local filename server.pfx

  7. Create an SSL server policy named ssl and specify PKI domain sslvpn for the policy.

    [Device] ssl server-policy ssl

    [Device-ssl-server-policy-ssl] pki-domain sslvpn

    [Device-ssl-server-policy-ssl] quit

  8. Configure the SSL VPN gateway for user access. Configure the IP address for SSL VPN gateway gw as 1.1.1.2 and port number as 2000, and then apply server policy ssl to the gateway.

    [Device] sslvpn gateway gw

    [Device-sslvpn-gateway-gw] ip address 1.1.1.2 port 2000

    [Device-sslvpn-gateway-gw] ssl server-policy ssl

    [Device-sslvpn-gateway-gw] service enable

    [Device-sslvpn-gateway-gw] quit

  9. Configure SSL VPN contexts to provide Web access service:

    # Create SSL VPN context ctx1, specify gateway gw and domain domain1 for the context, and then associate the context with VPN instance VPN1.

    [Device] sslvpn context ctx1

    [Device-sslvpn-context-ctx1] gateway gw domain domain1

    [Device-sslvpn-context-ctx1] vpn-instance VPN1

    [Device-sslvpn-context-ctx1] url-item urlitem

    [Device-sslvpn-context-ctx1-url-item-urlitem] url http://20.2.2.2

    [Device-sslvpn-context-ctx1-url-item-urlitem] quit

    [Device-sslvpn-context-ctx1] url-list urllist

    [Device-sslvpn-context-ctx1-url-list-urllist] heading web

    [Device-sslvpn-context-ctx1-url-list-urllist] resources url-item urlitem

    [Device-sslvpn-context-ctx1-url-list-urllist] quit

    [Device-sslvpn-context-ctx1] policy-group pgroup

    [Device-sslvpn-context-ctx1-policy-group-pgroup] resources url-list urllist

    [Device-sslvpn-context-ctx1-policy-group-pgroup] quit

    [Device-sslvpn-context-ctx1] default-policy-group pgroup

    [Device-sslvpn-context-ctx1] service enable

    [Device-sslvpn-context-ctx1] quit

    # Create SSL VPN context ctx2, specify gateway gw and domain domain2 for the context, and then associate the context with VPN instance VPN2.

    [Device] sslvpn context ctx2

    [Device-sslvpn-context-ctx2] gateway gw domain domain2

    [Device-sslvpn-context-ctx2] url-item urlitem

    [Device-sslvpn-context-ctx2-url-item-urlitem] url https://30.3.3.3

    [Device-sslvpn-context-ctx2-url-item-urlitem] quit

    [Device-sslvpn-context-ctx2] url-list urllist

    [Device-sslvpn-context-ctx2-url-list-urllist] heading web

    [Device-sslvpn-context-ctx2-url-list-urllist] resources url-item urlitem

    [Device-sslvpn-context-ctx2-url-list-urllist] quit

    [Device-sslvpn-context-ctx2] policy-group pgroup

    [Device-sslvpn-context-ctx2-policy-group-pgroup] resources url-list urllist

    [Device-sslvpn-context-ctx2-policy-group-pgroup] quit

    [Device-sslvpn-context-ctx2] default-policy-group pgroup

    [Device-sslvpn-context-ctx2] service enable

    [Device-sslvpn-context-ctx2] quit

  10. Create a local user named sslvpn, set the password to 123456, service type to sslvpn, and user role to network-operator. Authorize the user to use policy group pgroup.

    [Device] local-user sslvpn class network

    [Device-luser-network-sslvpn] password simple 123456

    [Device-luser-network-sslvpn] service-type sslvpn

    [Device-luser-network-sslvpn] authorization-attribute user-role network-operator

    [Device-luser-network-sslvpn] authorization-attribute sslvpn-policy-group pgroup

    [Device-luser-network-sslvpn] quit

Verifying the configuration

# Verify that SSL VPN gateway gw is up on the device.

[Device] display sslvpn gateway

Gateway name: gw

Operation state: Up

IP: 1.1.1.2 Port: 2000

SSL server policy configured: ssl

SSL server policy in use: ssl

Front VPN instance: Not configured

# Verify that SSL VPN contexts ctx1 and ctx2 are up on the device.

[Device] display sslvpn context

Context name: ctx1

Operation state: Up

AAA domain: Not specified

Certificate authentication: Disabled

Password authentication: Enabled

Authentication use: All

SMS auth type: Not configured

Urlmasking: Disabled

Code verification: Disabled

Default policy group: pgroup

Associated SSL VPN gateway: gw

Domain name: domain1

Maximum users allowed: 1048575

VPN instance: Not configured

Idle timeout: 30 min

Authentication server-type: aaa

Password changing: Enabled

Context name: ctx2

Operation state: Up

AAA domain: Not specified

Certificate authentication: Disabled

Password authentication: Enabled

Authentication use: All

SMS auth type: Not configured

Urlmasking: Disabled

Code verification: Disabled

Default policy group: pgroup

Associated SSL VPN gateway: gw

Domain name: domain2

Maximum users allowed: 1048575

VPN instance: Not configured

Idle timeout: 30 min

Authentication server-type: aaa

Password changing: Enabled

# On the user PC, enter https://1.1.1.2:2000/ in the browser address bar to open the domain list page.

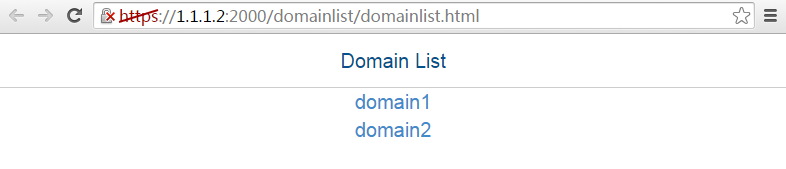

Figure-2 Domain list page

# Select domain1 to enter the login page.

# On the login page, enter username sslvpn and password 123456, and then click Login.

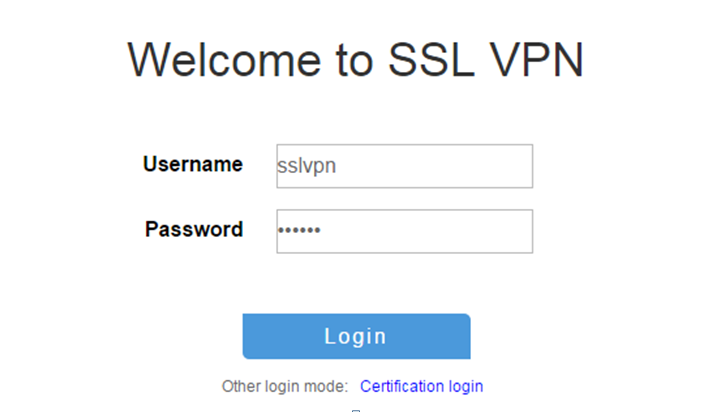

Figure-3 Login page

# Display SSL VPN session information on the device after the user logged in.

[Device] display sslvpn session context ctx1

SSL VPN context: ctx1

Users: 1

Username Connections Idle time Created User IP

sslvpn 6 0/00:12:05 0/00:04:14 40.1.1.1

# On the SSL VPN gateway home page, click the serverA link in the BookMark area to open the webpage of Server A. The URL https://1.1.1.2:2000/_proxy2/http/80/20.2.2.2/ is displayed in the browser address bar.

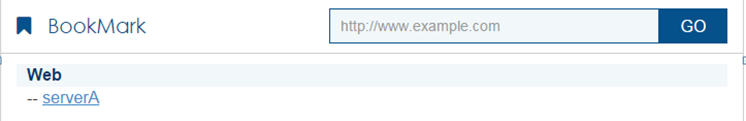

Figure-4 SSL VPN gateway home page

# Log out and restart the browser. Enter https://1.1.1.2:2000/ to enter the domain list page, and then select domain2 to enter the login page. On the login page, enter username sslvpn and password 123456, and then click Login. (Details not shown.)

# Display SSL VPN session information on the device after the user logged in.

[Device] display sslvpn session context ctx2

SSL VPN context: ctx2

Users: 1

Username Connections Idle time Created User IP

sslvpn 6 0/00:02:05 0/00:01:11 40.1.1.1

# On the SSL VPN gateway home page, click the serverB link in the BookMark area to open the webpage of Server B. The URL https://1.1.1.2:2000/_proxy2/https/443/30.3.3.3/ is displayed in the browser address bar.

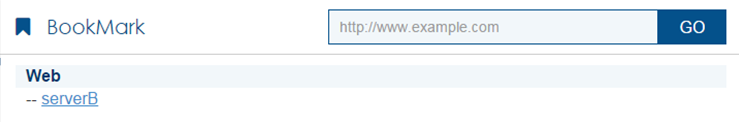

Figure-5 SSL VPN gateway home page

Configuration files

#

interface GigabitEthernet1/0/1

ip address 1.1.1.2 255.255.255.0

#

interface GigabitEthernet1/0/2

ip address 3.3.3.3 255.255.255.0

#

interface GigabitEthernet1/0/3

ip address 2.2.2.2 255.255.255.0

#

security-zone name Trust

import interface GigabitEthernet1/0/2

import interface GigabitEthernet1/0/3

#

security-zone name Untrust

import interface GigabitEthernet1/0/1

#

ip route-static 20.2.2.0 24 2.2.2.3

ip route-static 30.3.3.0 24 3.3.3.4

ip route-static 40.1.1.0 24 1.1.1.3

#

local-user sslvpn class network

password simple 123456

service-type sslvpn

authorization-attribute user-role network-operator

authorization-attribute sslvpn-policy-group pgroup

#

pki domain sslvpn

public-key rsa general name sslvpn

undo crl check enable

#

pki import domain sslvpn der ca filename ca.cer

pki import domain sslvpn p12 local filename server.pfx

#

ssl server-policy ssl

pki-domain sslvpn

#

sslvpn gateway gw

ip address 1.1.1.2 port 2000

ssl server-policy ssl

service enable

#

sslvpn context ctx1

vpn-instance VPN1

gateway gw domain domain1

url-item urlitem

url http://20.2.2.2

url-list urllist

heading web

resources url-item urlitem

policy-group pgroup

resources url-list urllist

default-policy-group pgroup

service enable

#

sslvpn context ctx2

vpn-instance VPN2

gateway gw domain domain2

url-item urlitem

url https://30.3.3.3

url-list urllist

heading web

resources url-item urlitem

policy-group pgroup

resources url-list urllist

default-policy-group pgroup

service enable

#

security-policy ip

rule 0 name sslvpnlocalout1

action pass

source-zone local

destination-zone untrust

source-ip-host 1.1.1.2

destination-ip-host 40.1.1.1

rule 1 name sslvpnlocalin1

action pass

source-zone untrust

destination-zone local

source-ip-host 40.1.1.1

destination-ip-host 1.1.1.2

rule 2 name sslvpnlocalout2

action pass

source-zone local

destination-zone trust

source-ip-host 2.2.2.2

source-ip-host 3.3.3.3

destination-ip-host 20.2.2.2

destination-ip-host 30.3.3.3

rule 3 name sslvpnlocalin2

action pass

source-zone trust

destination-zone local

source-ip-host 20.2.2.2

source-ip-host 30.3.3.3

destination-ip-host 2.2.2.2

destination-ip-host 3.3.3.3

#
