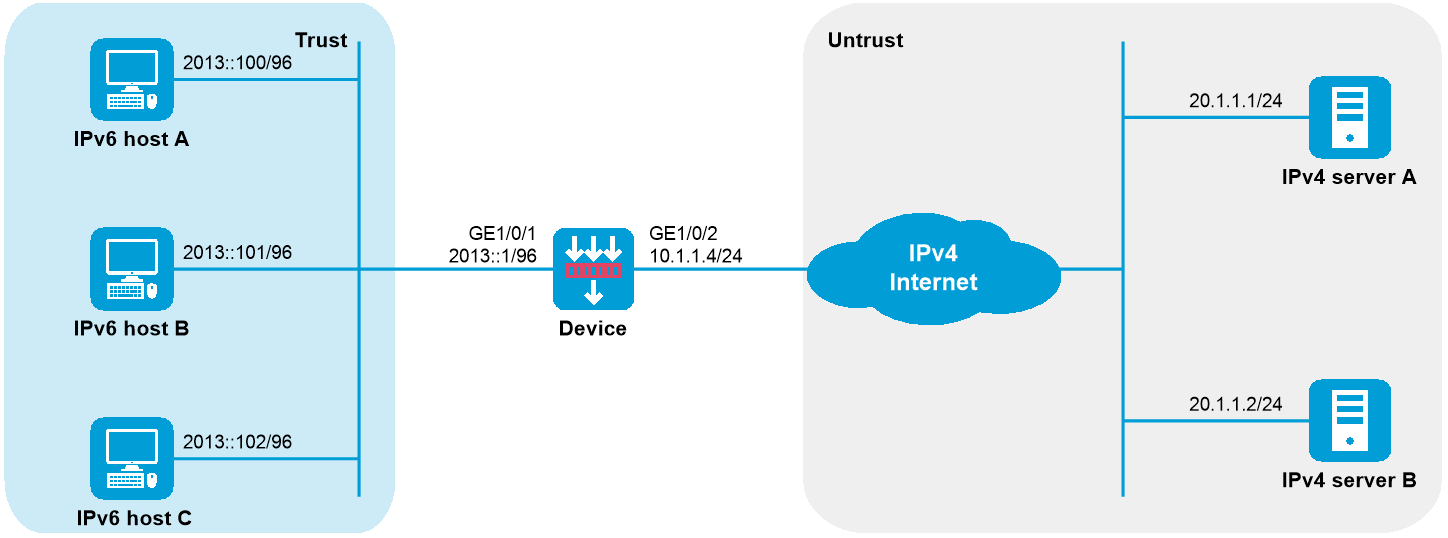

As shown in Figure 1, a company upgrades the network to IPv6 and has IPv4 addresses from 10.1.1.1 to 10.1.1.3.
To allow IPv6 hosts on subnet 2013::/96 to access the IPv4 Internet, configure the following AFT policies on the device:
Configure a NAT64 prefix to translate IPv4 addresses of IPv4 servers to IPv6 addresses.
Configure an IPv6-to-IPv4 source address dynamic translation policy to translate source IPv6 addresses of IPv6-initiated packets to IPv4 addresses in the range of 10.1.1.1 to 10.1.1.3.
This configuration example was created and verified on F9900 of the F5000-AI120 device.
1. Assign IP addresses to interfaces:
# Assign an IP address to interface GigabitEthernet 1/0/1.
<Device> system-view
[Device] interface gigabitethernet 1/0/1
[Device-GigabitEthernet1/0/1] ipv6 address 2013::1 96
[Device-GigabitEthernet1/0/1] quit
# Assign IP addresses to other interfaces in the same way. (Details not shown.)
2. Add interfaces to security zones.
[Device] security-zone name trust
[Device-security-zone-Trust] import interface gigabitethernet 1/0/1
[Device-security-zone-Trust] quit
[Device] security-zone name untrust
[Device-security-zone-Untrust] import interface gigabitethernet 1/0/2
[Device-security-zone-Untrust] quit
3. Configure settings for routing.
This example configures a static route with next hop address 10.1.1.100.
[Device] ip route-static 20.1.1.0 24 10.1.1.100
4. Configure security policies:
# In the IPv6 security policy, configure a rule named aftlocalin to allow the device to perform AFT on the IPv6 host traffic destined for the IPv4 servers.
[Device] security-policy ipv6
[Device-security-policy-ipv6] rule name aftlocalin
[Device-security-policy-ipv6-1-aftlocalin] source-zone trust
[Device-security-policy-ipv6-1-aftlocalin] destination-zone local
[Device-security-policy-ipv6-1-aftlocalin] source-ip-subnet 2013:: 96
[Device-security-policy-ipv6-1-aftlocalin] destination-ip-host 2012::20.1.1.1
[Device-security-policy-ipv6-1-aftlocalin] destination-ip-host 2012::20.1.1.2
[Device-security-policy-ipv6-1-aftlocalin] action pass
[Device-security-policy-ipv6-1-aftlocalin] quit
[Device-security-policy-ipv6] quit
# In the IPv6 security policy, configure a rule named aftlocalout to allow the device to forward the AFT-translated packets to the IPv4 servers.
[Device] security-policy ip
[Device-security-policy-ip] rule name aftlocalout
[Device-security-policy-ip-1-aftlocalout] source-zone local
[Device-security-policy-ip-1-aftlocalout] destination-zone untrust
[Device-security-policy-ip-1-aftlocalout] source-ip-host 10.1.1.1
[Device-security-policy-ip-1-aftlocalout] source-ip-host 10.1.1.2
[Device-security-policy-ip-1-aftlocalout] source-ip-host 10.1.1.3
[Device-security-policy-ip-1-aftlocalout] destination-ip-host 20.1.1.1
[Device-security-policy-ip-1-aftlocalout] destination-ip-host 20.1.1.2
[Device-security-policy-ip-1-aftlocalout] action pass
[Device-security-policy-ip-1-aftlocalout] quit
[Device-security-policy-ip] quit
5. Configure AFT settings:
# Create AFT address group 0, and add the address range from 10.1.1.1 to 10.1.1.3 to the group.
[Device] aft address-group 0
[Device-aft-address-group-0] address 10.1.1.1 10.1.1.3
[Device-aft-address-group-0] quit
# Configure IPv6 ACL 2000 to permit IPv6 packets only from subnet 2013::/96 to pass through.
[Device] acl ipv6 basic 2000
[Device-acl-ipv6-basic-2000] rule permit source 2013:: 96
[Device-acl-ipv6-basic-2000] rule deny
[Device-acl-ipv6-basic-2000] quit
# Configure the device to translate source IPv6 addresses of packets permitted by IPv6 ACL 2000 to IPv4 addresses in address group 0.
[Device] aft v6tov4 source acl ipv6 number 2000 address-group 0
# Configure the device to use NAT64 prefix 2012::/96 to translate destination IPv6 addresses of IPv6 packets.
[Device] aft prefix-nat64 2012:: 96
# Enable AFT on the interfaces connected to the IPv6 network and IPv4 Internet, respectively.
[Device] interface gigabitethernet 1/0/1
[Device-GigabitEthernet1/0/1] aft enable
[Device-GigabitEthernet1/0/1] quit
[Device] interface gigabitethernet 1/0/2
[Device-GigabitEthernet1/0/2] aft enable
[Device-GigabitEthernet1/0/2] quit
# Verify the connectivity between IPv6 hosts and IPv4 servers. This example pings IPv4 server A from IPv6 host A.
D:\>ping 2012::20.1.1.1
Pinging 2012::20.1.1.1 with 32 bytes of data:
Reply from 2012::20.1.1.1: time=3ms
Reply from 2012::20.1.1.1: time=3ms
Reply from 2012::20.1.1.1: time=3ms
Reply from 2012::20.1.1.1: time=3ms
# Display detailed information about IPv6 AFT sessions on the device.
[Device] display aft session ipv6 verbose
Initiator:
Source IP/port: 2013::100/0
Destination IP/port: 2012::1401:0101/32768
VPN instance/VLAN ID/Inline ID: -/-/-
Protocol: IPV6-ICMP(58)
Inbound interface: GigabitEthernet1/0/1
Source security zone: Trust
Responder:
Source IP/port: 2012::1401:0101/0
Destination IP/port: 2013::100/33024
VPN instance/VLAN ID/Inline ID: -/-/-
Protocol: IPV6-ICMP(58)
Inbound interface: GigabitEthernet1/0/2
Source security zone: Local
State: ICMPV6_REPLY
Application: ICMP
Rule ID: -/-/-
Rule name:
Start time: 2014-03-13 08:52:59 TTL: 23s
Initiator->Responder: 4 packets 320 bytes
Responder->Initiator: 4 packets 320 bytes
Total sessions found: 1
# Display detailed information about IPv4 AFT sessions on the device.
[Device] display aft session ipv4 verbose
Initiator:
Source IP/port: 10.1.1.1/1025
Destination IP/port: 20.1.1.1/2048
DS-Lite tunnel peer: -
VPN instance/VLAN ID/Inline ID: -/-/-
Protocol: ICMP(1)
Inbound interface: GigabitEthernet1/0/1
Source security zone: Local
Responder:
Source IP/port: 20.1.1.1/1025
Destination IP/port: 10.1.1.1/0
DS-Lite tunnel peer: -
VPN instance/VLAN ID/Inline ID: -/-/-
Protocol: ICMP(1)
Inbound interface: GigabitEthernet1/0/2
Source security zone: Untrust
State: ICMP_REPLY
Application: ICMP
Rule ID: 0
Rule name: aftlocalout
Start time: 2014-03-13 08:52:59 TTL: 27s
Initiator->Responder: 4 packets 240 bytes
Responder->Initiator: 4 packets 240 bytes
Total sessions found: 1
#
interface GigabitEthernet1/0/1
aft enable
ipv6 address 2013::1/96
#
interface GigabitEthernet1/0/2
ip address 10.1.1.4 255.255.255.0
aft enable
#
security-zone name Trust
import interface GigabitEthernet1/0/1
#
security-zone name Untrust
import interface GigabitEthernet1/0/2
#
ip route-static 20.1.1.0 24 10.1.1.100
#
acl ipv6 basic 2000
rule 0 permit source 2013::/96
rule 5 deny
#
aft address-group 0
address 10.1.1.1 10.1.1.3
#
aft prefix-nat64 2012:: 96
aft v6tov4 source acl ipv6 number 2000 address-group 0
#
security-policy ip
rule 0 name aftlocalout
action pass
source-zone local
destination-zone untrust
source-ip-host 10.1.1.1
source-ip-host 10.1.1.2
source-ip-host 10.1.1.3
destination-ip-host 20.1.1.1
destination-ip-host 20.1.1.2
#
security-policy ipv6
rule 0 name aftlocalin
action pass
source-zone trust
destination-zone local
source-ip-subnet 2013::/96
destination-ip-host 2012::1401:101
destination-ip-host 2012::1401:102
