CLI example: Configuring IPsec tunnel interface-based IPsec for IPv4 packets (IKEv2 with preshared key authentication)

Network configuration

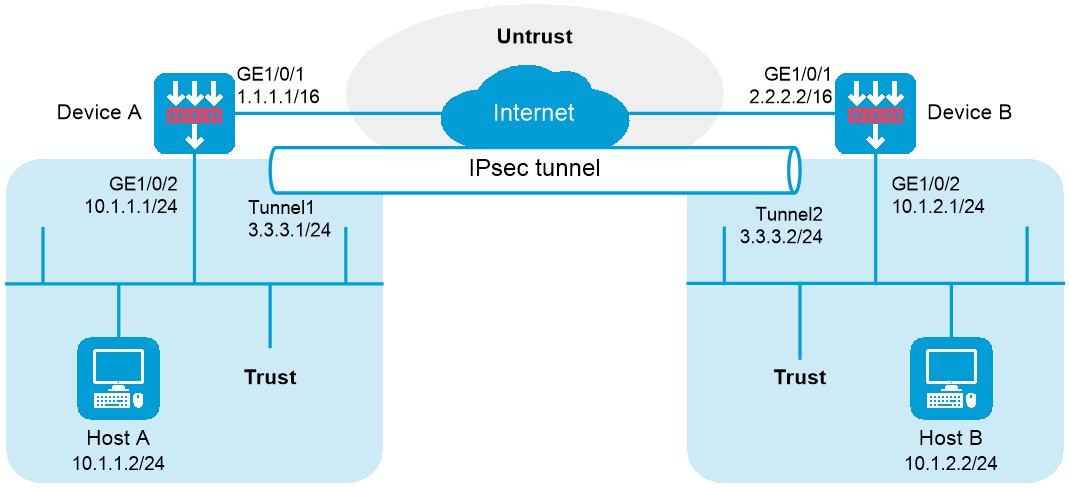

As shown in Figure-1, configure IPsec tunnel interface-based IPsec on Device A and Device B to protect the traffic between subnet 10.1.1.0/24 and subnet 10.1.2.0/24.

Software versions used

This configuration example was created and verified on R9900P2705 of the F5000-AI-55-G device.

Procedures

Configuring Device A

  1. Assign IP addresses to interfaces:

    # Assign an IP address to interface GigabitEthernet 1/0/1.

    <DeviceA> system-view

    [DeviceA] interface gigabitethernet 1/0/1

    [DeviceA-GigabitEthernet1/0/1] ip address 1.1.1.1 255.255.0.0

    [DeviceA-GigabitEthernet1/0/1] quit

    # Assign IP addresses to other interfaces in the same way. (Details not shown.)

  2. Configure settings for routing.

    This example configures static routes, and the next hop in the routes is 1.1.1.2.

    [DeviceA] ip route-static 2.2.2.2 16 1.1.1.2

  3. Add interfaces to security zones.

    [DeviceA] security-zone name trust

    [DeviceA-security-zone-Trust] import interface gigabitethernet 1/0/2

    [DeviceA-security-zone-Trust] quit

    [DeviceA] security-zone name untrust

    [DeviceA-security-zone-Untrust] import interface gigabitethernet 1/0/1

    [DeviceA-security-zone-Untrust] quit

  4. Configure a security policy:

    1. Configure rules to permit traffic between the Untrust and Local security zones, so the devices can set up an IPsec tunnel:

      # Configure a rule named ipseclocalout to allow Device A to send IPsec negotiation packets to Device B.

      [DeviceA] security-policy ip

      [DeviceA-security-policy-ip] rule name ipseclocalout

      [DeviceA-security-policy-ip-1-ipseclocalout] source-zone local

      [DeviceA-security-policy-ip-1-ipseclocalout] destination-zone untrust

      [DeviceA-security-policy-ip-1-ipseclocalout] source-ip-host 1.1.1.1

      [DeviceA-security-policy-ip-1-ipseclocalout] destination-ip-host 2.2.2.2

      [DeviceA-security-policy-ip-1-ipseclocalout] action pass

      [DeviceA-security-policy-ip-1-ipseclocalout] quit

      # Configure a rule named ipseclocalin to allow Device A to receive the IPsec negotiation packets sent from Device B.

      [DeviceA-security-policy-ip] rule name ipseclocalin

      [DeviceA-security-policy-ip-2-ipseclocalin] source-zone untrust

      [DeviceA-security-policy-ip-2-ipseclocalin] destination-zone local

      [DeviceA-security-policy-ip-2-ipseclocalin] source-ip-host 2.2.2.2

      [DeviceA-security-policy-ip-2-ipseclocalin] destination-ip-host 1.1.1.1

      [DeviceA-security-policy-ip-2-ipseclocalin] action pass

      [DeviceA-security-policy-ip-2-ipseclocalin] quit

    2. Configure rules to permit the traffic between Host A and Host B:

      # Configure a rule named trust-untrust to permit the packets from Host A to Host B.

      [DeviceA-security-policy-ip] rule name trust-untrust

      [DeviceA-security-policy-ip-3-trust-untrust] source-zone trust

      [DeviceA-security-policy-ip-3-trust-untrust] destination-zone untrust

      [DeviceA-security-policy-ip-3-trust-untrust] source-ip-subnet 10.1.1.0 24

      [DeviceA-security-policy-ip-3-trust-untrust] destination-ip-subnet 10.1.2.0 24

      [DeviceA-security-policy-ip-3-trust-untrust] action pass

      [DeviceA-security-policy-ip-3-trust-untrust] quit

      # Configure a rule named untrust-trust to permit the packets from Host B to Host A.

      [DeviceA-security-policy-ip] rule name untrust-trust

      [DeviceA-security-policy-ip-4-untrust-trust] source-zone untrust

      [DeviceA-security-policy-ip-4-untrust-trust] destination-zone trust

      [DeviceA-security-policy-ip-4-untrust-trust] source-ip-subnet 10.1.2.0 24

      [DeviceA-security-policy-ip-4-untrust-trust] destination-ip-subnet 10.1.1.0 24

      [DeviceA-security-policy-ip-4-untrust-trust] action pass

      [DeviceA-security-policy-ip-4-untrust-trust] quit

      [DeviceA-security-policy-ip] quit

  5. Configure an IPsec transform set to specify the packet encapsulation mode, security protocols, and algorithms.

    [DeviceA] ipsec transform-set tran1

    [DeviceA-ipsec-transform-set-tran1] encapsulation-mode tunnel

    [DeviceA-ipsec-transform-set-tran1] protocol esp

    [DeviceA-ipsec-transform-set-tran1] esp encryption-algorithm des-cbc

    [DeviceA-ipsec-transform-set-tran1] esp authentication-algorithm sha1

    [DeviceA-ipsec-transform-set-tran1] quit

  6. Configure an IKEv2 keychain to specify the key information used for IKEv2 communication.

    [DeviceA] ikev2 keychain keychain1

    [DeviceA-ikev2-keychain-keychain1] peer peer1

    [DeviceA-ikev2-keychain-keychain1-peer-peer1] address 2.2.2.2 16

    [DeviceA-ikev2-keychain-keychain1-peer-peer1] identity address 2.2.2.2

    [DeviceA-ikev2-keychain-keychain1-peer-peer1] pre-shared-key plaintext abcde

    [DeviceA-ikev2-keychain-keychain1-peer-peer1] quit

    [DeviceA-ikev2-keychain-keychain1] quit

  7. Configure an IKEv2 profile to specify the security parameters used for setting up IKEv2 SAs.

    [DeviceA] ikev2 profile profile1

    [DeviceA-ikev2-profile-profile1] authentication-method local pre-share

    [DeviceA-ikev2-profile-profile1] authentication-method remote pre-share

    [DeviceA-ikev2-profile-profile1] keychain keychain1

    [DeviceA-ikev2-profile-profile1] match remote identity address 2.2.2.2 255.255.0.0

    [DeviceA-ikev2-profile-profile1] quit

  8. Configure an IPsec profile to establish an IPsec tunnel to protect the specified data:

    [DeviceA] ipsec profile abc isakmp

    [DeviceA-ipsec-profile-isakmp-abc] transform-set tran1

    [DeviceA-ipsec-profile-isakmp-abc] ikev2-profile profile1

    [DeviceA-ipsec-profile-isakmp-abc] quit

  9. Configure an IPsec tunnel interface, which encapsulates the traffic to be protected with IPsec:

    # Create an IPsec tunnel interface, and apply the IPsec profile.

    [DeviceA] interface tunnel 1 mode ipsec

    [DeviceA-Tunnel1] ip address 3.3.3.1 255.255.255.0

    [DeviceA-Tunnel1] source 1.1.1.1

    [DeviceA-Tunnel1] destination 2.2.2.2

    [DeviceA-Tunnel1] tunnel protection ipsec profile abc

    [DeviceA-Tunnel1] quit

    # Add the IPsec tunnel interface to security zone Untrust.

    [DeviceA] security-zone name untrust

    [DeviceA-security-zone-Untrust] import interface tunnel 1

    [DeviceA-security-zone-Untrust] quit

    # Configure a static route to direct the traffic to be protected to the IPsec tunnel interface.

    [DeviceA] ip route-static 10.1.2.0 255.255.255.0 tunnel 1

Configuring Device B

  1. Assign IP addresses to interfaces:

    # Assign an IP address to interface GigabitEthernet 1/0/1.

    <DeviceB> system-view

    [DeviceB] interface gigabitethernet 1/0/1

    [DeviceB-GigabitEthernet1/0/1] ip address 2.2.2.2 255.255.0.0

    [DeviceB-GigabitEthernet1/0/1] quit

    # Assign IP addresses to other interfaces in the same way. (Details not shown.)

  2. Configure settings for routing.

    This example configures static routes, and the next hop in the routes is 2.2.2.1.

    [DeviceB] ip route-static 1.1.1.1 16 2.2.2.1

  3. Add interfaces to security zones.

    [DeviceB] security-zone name trust

    [DeviceB-security-zone-Trust] import interface gigabitethernet 1/0/2

    [DeviceB-security-zone-Trust] quit

    [DeviceB] security-zone name untrust

    [DeviceB-security-zone-Untrust] import interface gigabitethernet 1/0/1

    [DeviceB-security-zone-Untrust] quit

  4. Configure a security policy:

    1. Configure rules to permit traffic between the Untrust and Local security zones, so the devices can set up an IPsec tunnel:

      # Configure a rule named ipseclocalout to allow Device B to send IPsec negotiation packets to Device A.

      [DeviceB] security-policy ip

      [DeviceB-security-policy-ip] rule name ipseclocalout

      [DeviceB-security-policy-ip-1-ipseclocalout] source-zone local

      [DeviceB-security-policy-ip-1-ipseclocalout] destination-zone untrust

      [DeviceB-security-policy-ip-1-ipseclocalout] source-ip-host 2.2.2.2

      [DeviceB-security-policy-ip-1-ipseclocalout] destination-ip-host 1.1.1.1

      [DeviceB-security-policy-ip-1-ipseclocalout] action pass

      [DeviceB-security-policy-ip-1-ipseclocalout] quit

      # Configure a rule named ipseclocalin to allow Device B to receive the IPsec negotiation packets sent from Device A.

      [DeviceB-security-policy-ip] rule name ipseclocalin

      [DeviceB-security-policy-ip-2-ipseclocalin] source-zone untrust

      [DeviceB-security-policy-ip-2-ipseclocalin] destination-zone local

      [DeviceB-security-policy-ip-2-ipseclocalin] source-ip-host 1.1.1.1

      [DeviceB-security-policy-ip-2-ipseclocalin] destination-ip-host 2.2.2.2

      [DeviceB-security-policy-ip-2-ipseclocalin] action pass

      [DeviceB-security-policy-ip-2-ipseclocalin] quit

    2. Configure rules to permit traffic between Host B and Host A:

      # Configure a rule named trust-untrust to permit the packets from Host B to Host A.

      [DeviceB-security-policy-ip] rule name trust-untrust

      [DeviceB-security-policy-ip-3-trust-untrust] source-zone trust

      [DeviceB-security-policy-ip-3-trust-untrust] destination-zone untrust

      [DeviceB-security-policy-ip-3-trust-untrust] source-ip-subnet 10.1.2.0 24

      [DeviceB-security-policy-ip-3-trust-untrust] destination-ip-subnet 10.1.1.0 24

      [DeviceB-security-policy-ip-3-trust-untrust] action pass

      [DeviceB-security-policy-ip-3-trust-untrust] quit

      # Configure a rule named untrust-trust to permit the packets from Host A to Host B.

      [DeviceB-security-policy-ip] rule name untrust-trust

      [DeviceB-security-policy-ip-4-untrust-trust] source-zone untrust

      [DeviceB-security-policy-ip-4-untrust-trust] destination-zone trust

      [DeviceB-security-policy-ip-4-untrust-trust] source-ip-subnet 10.1.1.0 24

      [DeviceB-security-policy-ip-4-untrust-trust] destination-ip-subnet 10.1.2.0 24

      [DeviceB-security-policy-ip-4-untrust-trust] action pass

      [DeviceB-security-policy-ip-4-untrust-trust] quit

      [DeviceB-security-policy-ip] quit

  5. Configure an IPsec transform set to specify the packet encapsulation mode, security protocols, and algorithms.

    [DeviceB] ipsec transform-set tran1

    [DeviceB-ipsec-transform-set-tran1] encapsulation-mode tunnel

    [DeviceB-ipsec-transform-set-tran1] protocol esp

    [DeviceB-ipsec-transform-set-tran1] esp encryption-algorithm des-cbc

    [DeviceB-ipsec-transform-set-tran1] esp authentication-algorithm sha1

    [DeviceB-ipsec-transform-set-tran1] quit

  6. Configure an IKEv2 keychain to specify the key information used for IKEv2 communication.

    [DeviceB] ikev2 keychain keychain1

    [DeviceB-ikev2-keychain-keychain1] peer peer1

    [DeviceB-ikev2-keychain-keychain1-peer-peer1] address 1.1.1.1 16

    [DeviceB-ikev2-keychain-keychain1-peer-peer1] identity address 1.1.1.1

    [DeviceB-ikev2-keychain-keychain1-peer-peer1] pre-shared-key plaintext abcde

    [DeviceB-ikev2-keychain-keychain1-peer-peer1] quit

    [DeviceB-ikev2-keychain-keychain1] quit

  7. Configure an IKEv2 profile to specify the security parameters used for setting up IKEv2 SAs.

    [DeviceB] ikev2 profile profile1

    [DeviceB-ikev2-profile-profile1] authentication-method local pre-share

    [DeviceB-ikev2-profile-profile1] authentication-method remote pre-share

    [DeviceB-ikev2-profile-profile1] keychain keychain1

    [DeviceA-ikev2-profile-profile1] match remote identity address 1.1.1.1 255.255.0.0

    [DeviceA-ikev2-profile-profile1] quit

  8. Configure an IPsec profile to establish an IPsec tunnel to protect the specified data:

    [DeviceB] ipsec profile abc isakmp

    [DeviceB-ipsec-profile-isakmp-abc] transform-set tran1

    [DeviceB-ipsec-profile-isakmp-abc] ikev2-profile profile1

    [DeviceB-ipsec-profile-isakmp-abc] quit

  9. Configure an IPsec tunnel interface, which encapsulates the traffic to be protected with IPsec:

    # Create an IPsec tunnel interface, and apply the IPsec profile.

    [DeviceB] interface tunnel 1 mode ipsec

    [DeviceB-Tunnel1] ip address 3.3.3.2 255.255.255.0

    [DeviceB-Tunnel1] source 2.2.2.2

    [DeviceB-Tunnel1] destination 1.1.1.1

    [DeviceB-Tunnel1] tunnel protection ipsec profile abc

    [DeviceB-Tunnel1] quit

    # Add the IPsec tunnel interface to security zone Untrust.

    [DeviceB] security-zone name untrust

    [DeviceB-security-zone-Untrust] import interface tunnel 1

    [DeviceB-security-zone-Untrust] quit

    # Configure a static route to direct the traffic to be protected to the IPsec tunnel interface.

    [DeviceB] ip route-static 10.1.1.0 255.255.255.0 tunnel 1

Verifying the configuration

After the configuration is completed, Device A will automatically initiate IKEv2 negotiation with Device B. After IKEv2 negotiation succeeds, the tunnel interface will come up and traffic between two subnets will be IPsec-protected. This example uses Device A to verify the configuration.

# Display brief IP configuration for interfaces on Device A.

[DeviceA] display ip interface brief

*down: administratively down

(s): spoofing (l): loopback

Interface Physical Protocol IP address/Mask VPN instance Description

GE1/0/1 up up 1.1.1.1/16 -- --

GE1/0/2 up up 10.1.1.1/24 -- --

Tun1 up up 3.3.3.1/24 -- --

# Display tunnel interface information on Device A.

[DeviceA] display interface Tunnel 1

Tunnel1

Current state: UP

Line protocol state: UP

Description: Tunnel1 Interface

Bandwidth: 64 kbps

Maximum transmission unit: 1444

Internet address: 3.3.3.1/24 (primary)

Tunnel source 1.1.1.1, destination 2.2.2.2

Tunnel TTL 255

Tunnel protocol/transport IPsec/IP

Output queue - Urgent queuing: Size/Length/Discards 0/100/0

Output queue - Protocol queuing: Size/Length/Discards 0/500/0

Output queue - FIFO queuing: Size/Length/Discards 0/75/0

Last clearing of counters: Never

Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec

Input: 0 packets, 0 bytes, 0 drops

Output: 0 packets, 0 bytes, 0 drops

# Display IPsec SAs on Device A.

[DeviceA] display ipsec sa

-------------------------------

Interface: Tunnel1

-------------------------------

-----------------------------

IPsec profile: abc

Mode: ISAKMP

-----------------------------

Tunnel id: 0

Encapsulation mode: tunnel

Perfect Forward Secrecy:

Transmitting entity: Initiator

Path MTU: 1388

Tunnel:

local address/port: 1.1.1.1/500

remote address/port: 2.2.2.2/500

Flow:

sour addr: 0.0.0.0/0.0.0.0 port: 0 protocol: ip

dest addr: 0.0.0.0/0.0.0.0 port: 0 protocol: ip

[Inbound ESP SAs]

SPI: 2701952073 (0xa10c8449)

Connection ID: 4294967296

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843200/3180

Max received sequence-number: 0

Anti-replay check enable: Y

Anti-replay window size: 64

UDP encapsulation used for NAT traversal: N

Status: Active

[Outbound ESP SAs]

SPI: 3607077598 (0xd6ffa2de)

Connection ID: 12884901889

Transform set: ESP-ENCRYPT-DES-CBC ESP-AUTH-SHA1

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843200/3180

Max sent sequence-number: 0

UDP encapsulation used for NAT traversal: N

Status: Active

# Verify that a private IP address in subnet 10.1.1.0/24 can ping a private IP address in subnet 10.1.2.0/24 successfully.

[DeviceA] ping -a 10.1.1.2 10.1.2.2

Ping 10.1.2.1 (10.1.2.1) from 10.1.1.1: 56 data bytes, press CTRL_C to break

56 bytes from 10.1.2.1: icmp_seq=0 ttl=255 time=1.000 ms

56 bytes from 10.1.2.1: icmp_seq=1 ttl=255 time=1.000 ms

56 bytes from 10.1.2.1: icmp_seq=2 ttl=255 time=0.000 ms

56 bytes from 10.1.2.1: icmp_seq=3 ttl=255 time=1.000 ms

56 bytes from 10.1.2.1: icmp_seq=4 ttl=255 time=0.000 ms

--- Ping statistics for 10.1.2.1 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

round-trip min/avg/max/std-dev = 0.000/0.600/1.000/0.490 ms

Configuration files

Device A

#

interface GigabitEthernet1/0/1

ip address 1.1.1.1 255.255.0.0

#

interface GigabitEthernet1/0/2

ip address 10.1.1.1 255.255.0.0

#

interface Tunnel1 mode ipsec

ip address 3.3.3.1 255.255.255.0

source 1.1.1.1

destination 2.2.2.2

tunnel protection ipsec profile abc

#

security-zone name Trust

import interface GigabitEthernet1/0/2

#

security-zone name Untrust

import interface GigabitEthernet1/0/1

import interface Tunnel1

#

ip route-static 2.2.0.0 16 1.1.1.2

ip route-static 10.1.2.0 24 Tunnel1

#

ipsec transform-set tran1

encapsulation-mode tunnel

protocol esp

esp encryption-algorithm des-cbc

esp authentication-algorithm sha1

#

ipsec profile abc isakmp

transform-set tran1

ikev2-profile profile1

#

ikev2 keychain keychain1

peer peer1

address 2.2.2.2 255.255.0.0

identity address 2.2.2.2

pre-shared-key plaintext abcde

#

ikev2 profile profile1

authentication-method local pre-share

authentication-method remote pre-share

keychain keychain1

match remote identity address 2.2.2.2 255.255.0.0

#

security-policy ip

rule 0 name ipseclocalout

action pass

source-zone local

destination-zone untrust

source-ip-host 1.1.1.1

destination-ip-host 2.2.2.2

rule 1 name ipseclocalin

action pass

source-zone untrust

destination-zone local

source-ip-host 2.2.2.2

destination-ip-host 1.1.1.1

rule 2 name trust-untrust

action pass

source-zone trust

destination-zone untrust

source-ip-subnet 10.1.1.0 255.255.255.0

destination-ip-subnet 10.1.2.0 255.255.255.0

rule 3 name untrust-trust

action pass

source-zone untrust

destination-zone trust

source-ip-subnet 10.1.2.0 255.255.255.0

destination-ip-subnet 10.1.1.0 255.255.255.0

#

Device B

#

interface GigabitEthernet1/0/1

ip address 2.2.2.2 255.255.0.0

#

interface GigabitEthernet1/0/2

ip address 10.1.2.1 255.255.255.0

#

interface Tunnel1 mode ipsec

ip address 3.3.3.2 255.255.255.0

source 2.2.2.2

destination 1.1.1.1

tunnel protection ipsec profile abc

#

security-zone name Trust

import interface GigabitEthernet1/0/2

#

security-zone name Untrust

import interface GigabitEthernet1/0/1

import interface Tunnel1

#

ip route-static 1.1.0.0 16 2.2.2.1

ip route-static 10.1.1.0 24 Tunnel1

#

ipsec transform-set tran1

encapsulation-mode tunnel

protocol esp

esp encryption-algorithm des-cbc

esp authentication-algorithm sha1

#

ipsec profile abc isakmp

transform-set tran1

ikev2-profile profile1

#

ikev2 keychain keychain1

peer peer1

address 1.1.1.1 255.255.0.0

identity address 1.1.1.1

pre-shared-key plaintext abcde

#

ikev2 profile profile1

authentication-method local pre-share

authentication-method remote pre-share

keychain keychain1

match remote identity address 1.1.1.1 255.255.0.0

#

security-policy ip

rule 0 name ipseclocalout

action pass

source-zone local

destination-zone untrust

source-ip-host 2.2.2.2

destination-ip-host 1.1.1.1

rule 1 name ipseclocalin

action pass

source-zone untrust

destination-zone local

source-ip-host 1.1.1.1

destination-ip-host 2.2.2.2

rule 2 name trust-untrust

action pass

source-zone trust

destination-zone untrust

source-ip-subnet 10.1.2.0 255.255.255.0

destination-ip-subnet 10.1.1.0 255.255.255.0

rule 3 name untrust-trust

action pass

source-zone untrust

destination-zone trust

source-ip-subnet 10.1.1.0 255.255.255.0

destination-ip-subnet 10.1.2.0 255.255.255.0

#
