NetShare control

Introduction

NetShare control allows you to identify and control network sharing behaviors.

Basic concepts

Max terminals per IP

This item specifies the maximum number of terminals that can share an IP address.

NetShare control determines the action for a packet based on the number of terminals sharing the source IP address of the packet:

• If the number of terminals sharing the IP address exceeds the limit, the action specified in the NetShare policy is taken.

• If the number of terminals sharing the IP address is below the limit, the packet is permitted to pass through.

Freeze and unfreeze

When an IP address is frozen, all packets sourced from the IP address will be dropped.

The device automatically freezes an IP address for the freezing time when the following conditions are met:

• The number of terminals sharing the IP address exceeds the limit of Max terminals per IP.

• The Freeze action is configured for IP addresses shared by terminals exceeding the limit of Max terminals per IP.

You can also manually freeze and unfreeze an IP address on the NetShare Control > NetShare List page.

NetShare list

The NetShare list lists all IP addresses that are detected to be shared by terminals and their related information, including:

• Position.

• User name.

• VRF.

• Number of terminals sharing the IP address.

• NetShare policy name.

• Whether the IP address is frozen and if yes, the remaining time before expiration of the freezing time.

You can access the NetShare list by selecting NetShare Control > NetShare List in the navigation pane.

NetShare detection methods

The following methods are available for detecting networking sharing behaviors of terminals:

• APR-based detection—The device extracts the application information in packets based on Application Recognition (APR) to detect NetShare behaviors.

• IPID trail tracking—The device tracks the values of the IPID fields in packets to detect NetShare behaviors.

  Packets sent by the same host contain incremented IPID values of a unique sequential pattern that starts at a random number. NetShare control tracks the IPID values of packets sourced from the same IP address. If the IPID values in the packets within a time period belong to the same unique sequential pattern, only one terminal is using the IP address. If the IPID values belong to different sequential patterns, the source IP address is shared by multiple terminals.

NetShare control mechanism

As shown in Figure-1, the NetShare control module processes a packet as follows:

1. Determines if the NetShare policy is enabled.

   • If the policy is disabled, NetShare control permits the packet to pass through.

   • If the policy is enabled, NetShare control proceeds to step 2.

2. Determines if the source IP address of the packet is frozen,

   • If yes, NetShare control drops the packet.

   • If not, NetShare control proceeds to step 3.

3. Compares the packet with the filters in the NetShare policy to determine if the packet matches the policy.

   • If the packet does not match the policy, NetShare control permits the packet to pass through.

   • If the packet matches the policy, NetShare control proceeds to step 4.

4. Determines if the source IP address of the packet is shared by multiple terminals:

   • If not, NetShare control permits the packet to pass through.

   • If yes, NetShare control further determines whether the number of terminals sharing the IP address exceeds the limit of Max terminals per IP:

     • If the limit is exceeded, NetShare control takes the action specified in the NetShare policy.

     • If the limit is not exceeded, NetShare control permits the packet to pass through.

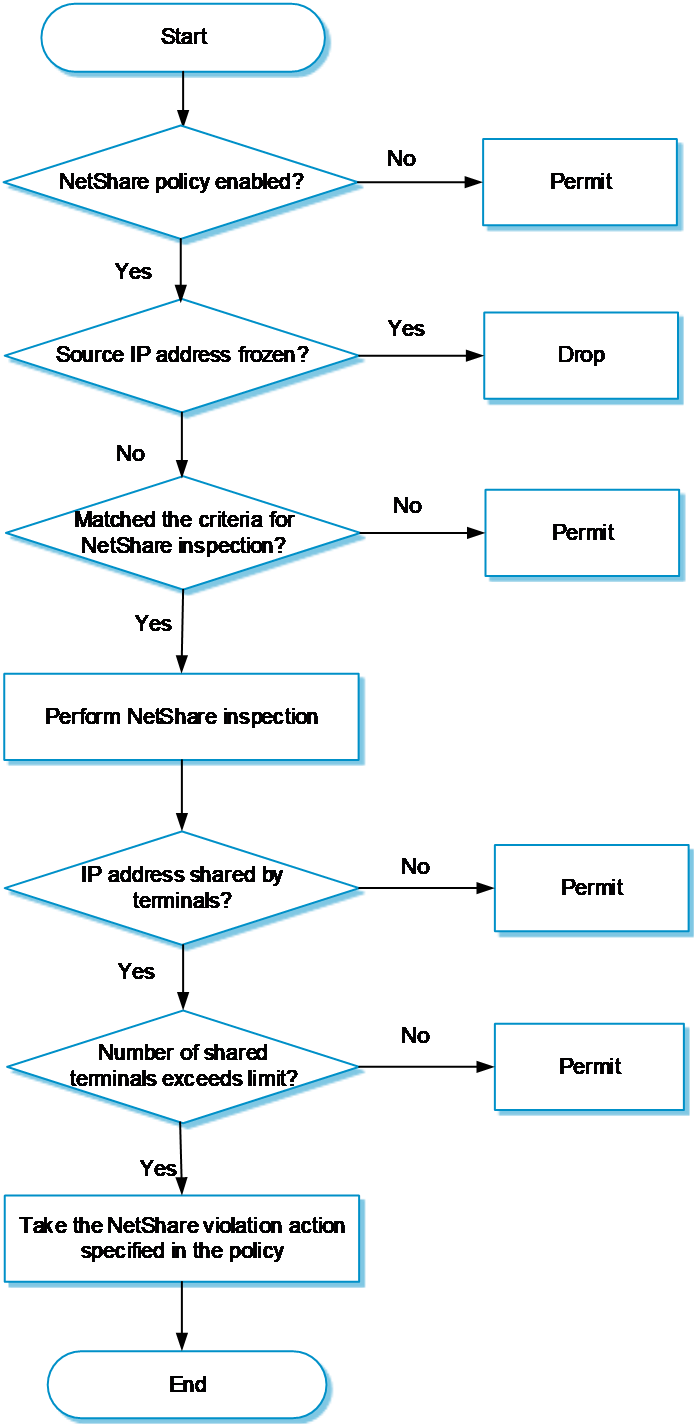

Figure-1 NetShare control mechanism

vSystem support information

Support of non-default vSystems for this feature depends on the device model. This feature is available on the Web interface only if it is supported.

Restrictions and guidelines

• After you create, edit, or delete the NetShare policy, click Submit to commit the configuration. This operation will interrupt DPI services and DPI-based services. For example, a security policy cannot control access to applications.

• After you submit the configuration, the system prompts Configuration succeeded. However, the configuration might not have been activated completely. The device cannot recognize packets as expected before the activation completes.

• NetShare control applies only to traffic permitted by security policies. For more information about security policies, see security policy help.

• Before using this feature, upgrade the APR signature library to the latest version.

• The device supports only one NetShare control policy, which must be manually created.

• When you use the APR-based detection to detect NetShare behaviors, follow these rules:

  • This detection method only inspects specific applications, such as QQ and WeChat.

  • If an application is encrypted, this detection method cannot inspect it.

• When you use the IPID trail tracking to detect NetShare behaviors, follow these rules:

  • This feature supports detecting the terminals that are running the Windows system, and detecting packets in which values of the IPID fields change regularly. Mobile terminals are not supported.

  • This detection method supports inspecting IPv4 packets.

Configure NetShare control

Analysis

Configure NetShare control as shown in Figure-2.

Figure-2 NetShare control configuration procedure

Prerequisites

Complete the following tasks before you configure this feature:

• Assign IP addresses to interfaces on the Network > Interface Configuration > Interfaces page.

• Configure routes on the Network > Routing page. Make sure the routes are available.

• Create security zones on the Network > Security Zones page.

• Add interfaces to security zones. You can add interfaces to a security zone on the Security Zones page or select a security zone for an interface on the Interfaces page.

• Configure security policies to permit the target traffic on the Policies > Security Policies page.

Configure a NetShare policy

Procedure

1. Click the Policies tab.

2. In the navigation pane, select NetShare Control > NetShare Policy.

3. Click Create to create a NetShare policy.

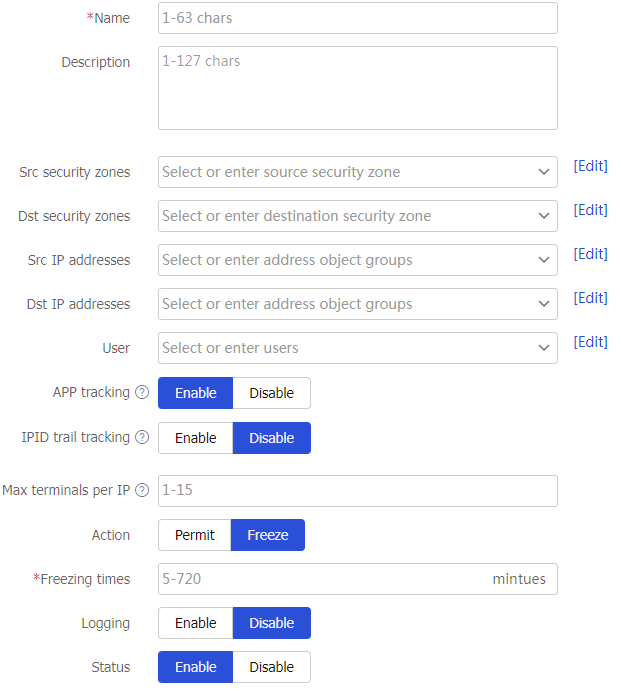

   Figure-3 Creating a NetShare policy





   Table-1 NetShare policy configuration items

   Item	Description
   Name	Enter a name for the NetShare policy.
   Description	Enter a description for the NetShare policy.
   Src security zones	Specify the source security zones to which the policy applies.
   Dst security zones	Specify the destination security zones to which the policy applies.
   Src IP addresses	Specify the source IP addresses to which the policy applies.
   Dst IP addresses	Specify the destination IP addresses to which the policy applies.
   User	Specify the users to whom the policy applies.
   APR-based detection	Select whether to enable APR-based detection. This feature detects NetShare behaviors based on APR, such as QQ, WeChat, 58.com, and Meituan. For more information, see "APR."
   IPID trail tracking	Select whether to enable IPID trail tracking. This feature tracks the values of the IPID fields in packets to detect NetShare behaviors.
   Max terminals per IP	Enter the maximum number of terminals that can share the same IP address.
   Action	Select the action to take when the number of terminals sharing an IP address exceeds the limit. Options are: Permit—Permits the packet to pass through. Freeze—Freezes the IP address so all packets sourced from the IP address will be dropped.
   Freezing time	This item is required only when the Freeze action is selected. Enter the number of minutes an IP address will be frozen.
   Logging	Select whether to enable NetShare control logging. When an IP address is detected to be shared by an excessive number of terminals (exceeding the limit of Max terminals per IP), the device generates a log message to record the IP address and the NetShare policy information.
   Status	Enable or disable the NetShare policy. The policy takes effect only after you enable it.

4. Click OK.

   Figure-4 Created NetShare policy



1. Click Submit to make the configuration take effect.
