Deploy a bare metal compute node

You can deploy a bare metal compute node on a physical server or VM.

This section contains the following topics:

Prepare for installation

Log in to CAS to create a VM as a bare metal compute node to provide bare metal computing capabilities.

·          For more information about the configuration on CAS, see CAS-related documentation.

·          For more information VM specification requirements, see H3C CloudOS 5.0 Deployment Guide.



Install the operating system for a bare metal compute node

Perform the following steps to load a PLAT image to install the operating system for a bare metal compute node after the VM is created successfully:

  1. Select software package type H3C CloudOS Node.

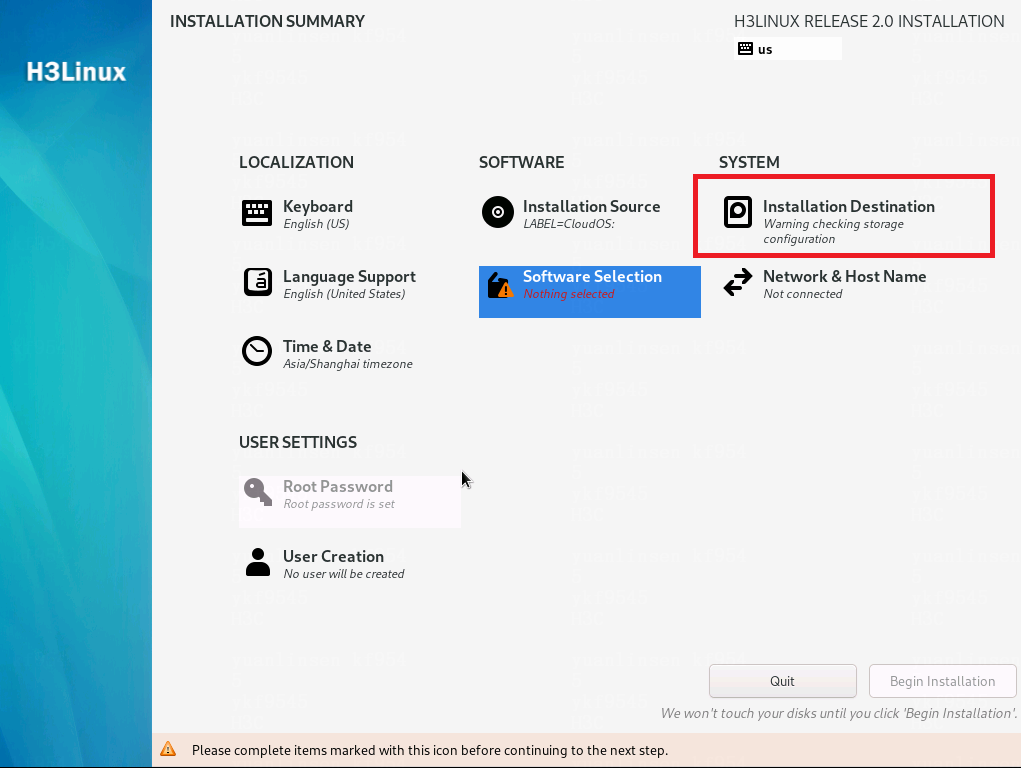

Figure-1 Installing a bare metal compute node

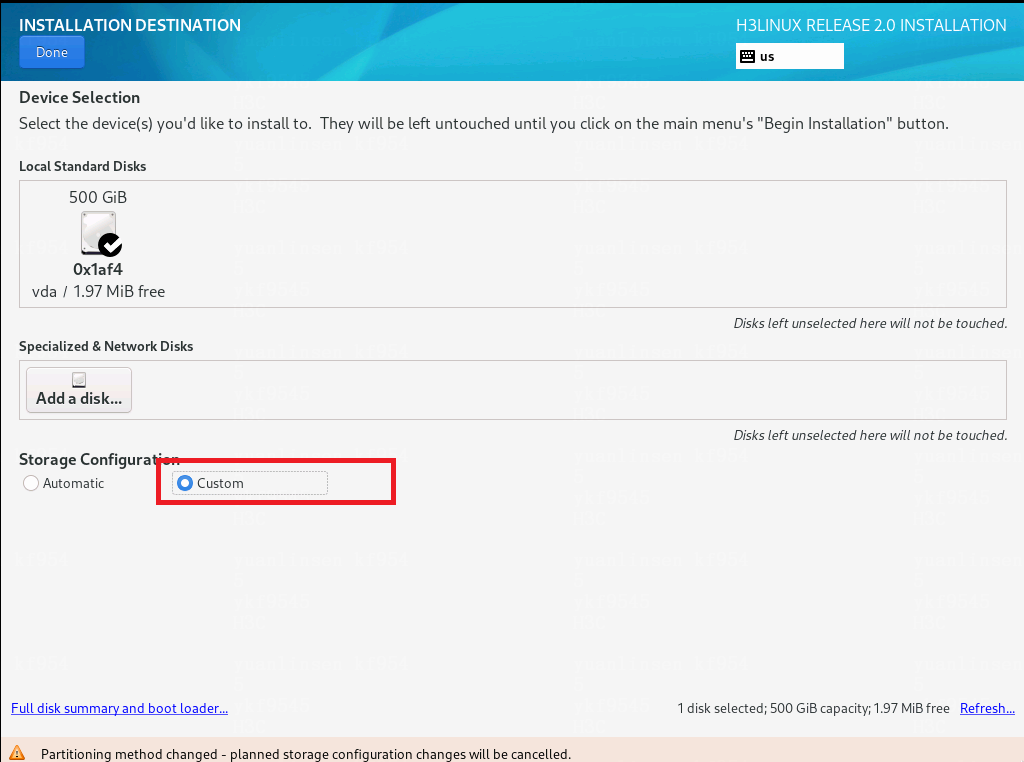

  1. As a best practice, configure partitions manually when you install the operating system for a bare metal compute node. Delete docker and mysql partitions and spare their capacity to the / partition.

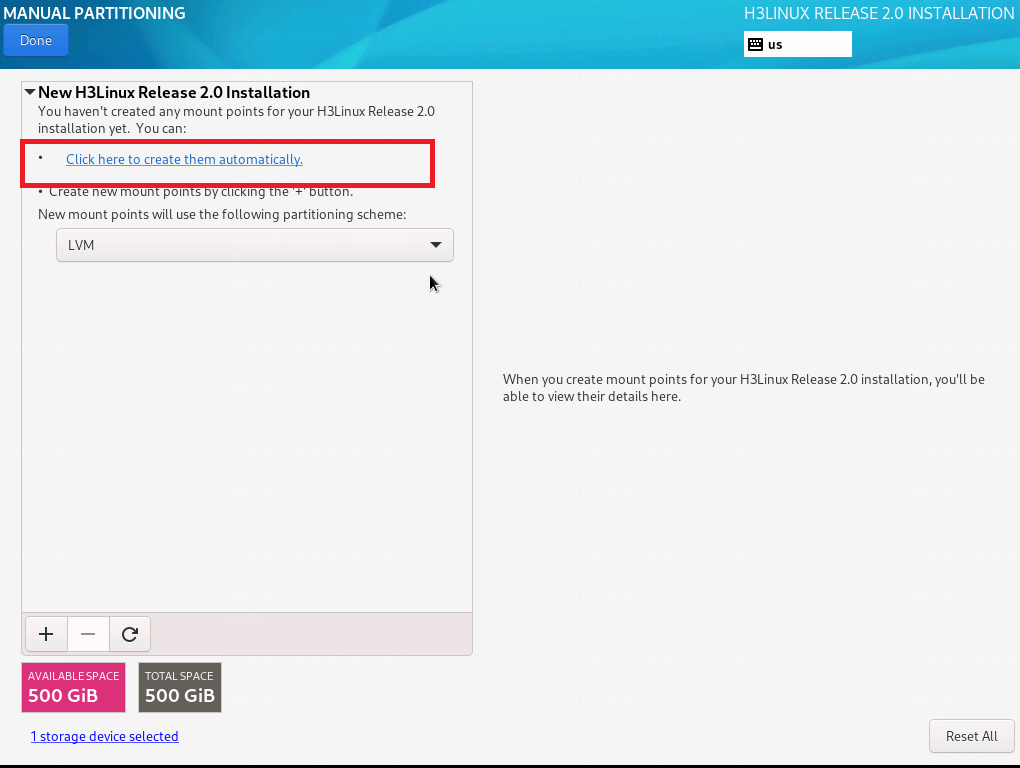

Figure-2 Manual partitioning 1



Figure-3 Manual partitioning 2



Figure-4 Manual partitioning 3

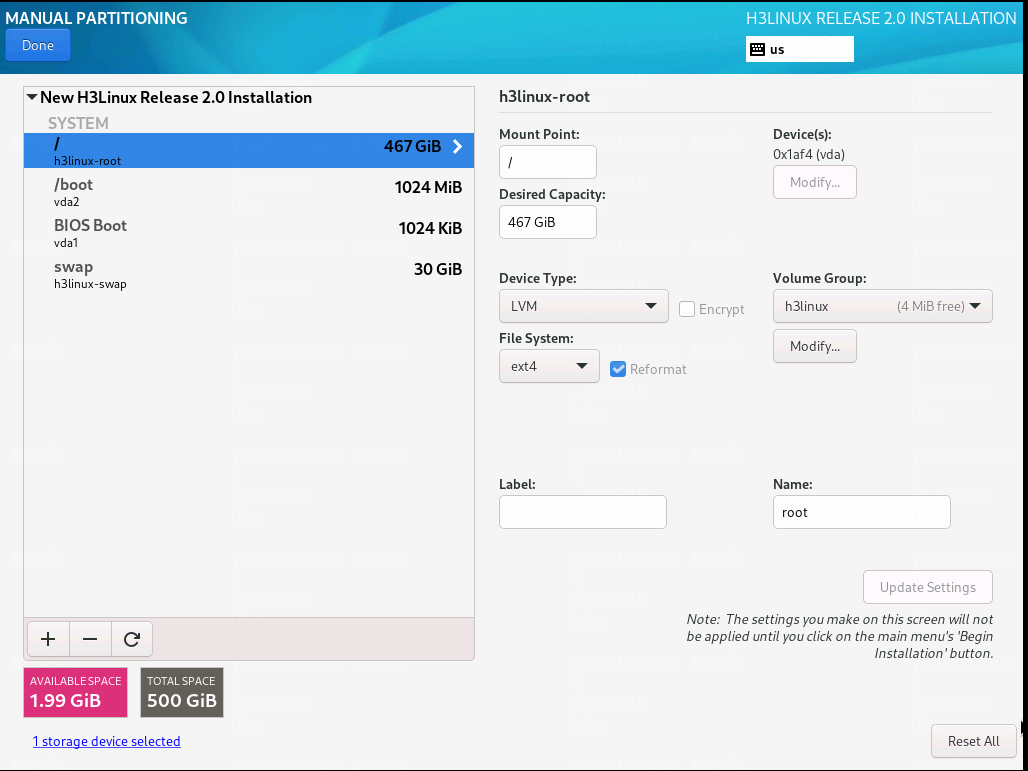

Figure-5 Recommended partitioning

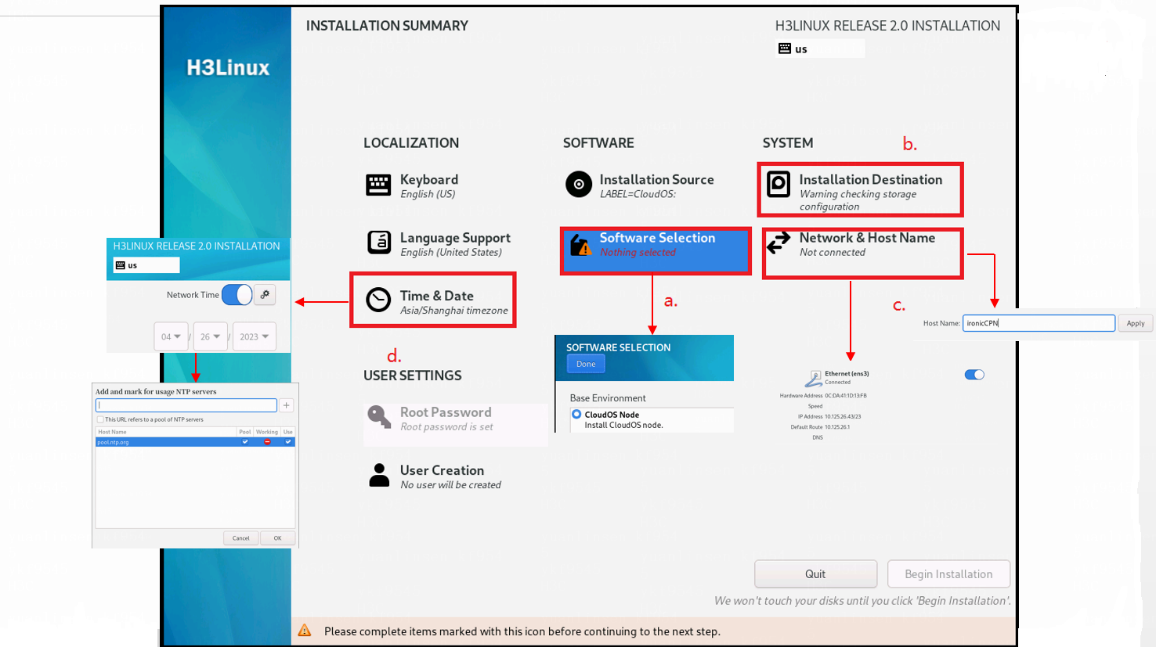

  1. Specify a host name and IP address for the compute node.

  1. Specify the master node as the NTP server.

Configure access rights to the database for a compute node

  1. On the top navigation bar, click System.

  1. From the left navigation pane, select System Settings > Security Settings > Database Whitelists.

  1. Click Add.

  1. In the dialog box that opens, select IP, and then enter the IP address of the bare metal compute node specified in "Install the operating system for a bare metal compute node."

  1. Click OK.

Configure a bare metal compute node

·          Only English punctuation marks are supported.

·          The bare metal compute node version must match the controller node version.

·          All executed scripts will be deployed to the corresponding configuration file. To edit a script, re-install the script. If you use a VM on CAS as a bare metal compute node, create a snapshot for the VM before installing a script. If any error occurs during script installation, restore the VM from the snapshot and then re-install the script.

·          The VXLAN ID range is 1 to 4094 for a bare metal network in flat mode. As a best practice, use bare metal service in a non-hierarchical scenario.



  1. Log in to the controller node through SSH.

  1. Transfer the openstack-compute-standalone.tar.gz file in the /opt/openstack directory to the root directory of the compute node. The IP address is the IP address of the bare metal node.

[root@node-0cbcd0 ~]# cd /opt/openstack

[root@node-0cbcd0 openstack]# ls

manila-share  openstack-compute  openstack-compute-standalone.tar.gz

[root@node-0cbcd0 openstack]# scp openstack-compute-standalone.tar.gz root@172.25.50.150:/root

  1. Use SSH to log in to the bare metal compute node.

  1. Execute the following commands to enter the root directory and find the openstack-compute-standalone.tar.gz file:

[root@ironic-c ~]# pwd

/root

[root@ironic-c ~]# ls

openstack-compute-standalone.tar.gz

  1. Execute the following command to decompress the openstack-compute-standalone.tar.gz file:

[root@ironic-c ~]# tar -zxvf openstack-compute-standalone.tar.gz

  1. Access the openstack-compute-standalone directory, and upload the ISO installation package to this directory.

Take E51XX as an example. Execute the following commands to upload installation package CloudOS-PLAT-E51XX-V500R001B03D013.iso.

[root@ironic-c ~]# cd openstack-compute-standalone

[root@abc-node-ironic openstack-compute-standalone]# ls

CloudOS-PLAT-E51XX-V500R001B03D013.iso compute  images  install-compute-pike.sh  others  packages  readme.txt  tools  upgrade  upgrade-ironic-mitaka2pike.sh  yum.repos.d

Make sure the ISO installation package is the only ISO file in the directory.

  1. Run the install-compute-pike.sh installation script.

[root@ironic-c openstack-compute-standalone]# ls

xxx.iso compute  images  install-compute-pike.sh  others  packages  readme.txt  tools  upgrade  upgrade-ironic-mitaka2pike.sh  yum.repos.d

Make sure the ISO installation package is the only ISO file in the directory.

  1. (Optional) Use the ironic-config.json configuration file to configure the bare metal compute node. If the file passes the check, you do not need to perform step 10. If the file fails the check, you must perform step 10.

JSON file:

{

    "VMTTYPE":"5",//Please enter the number of hypervisor type (0 qemu, 1 VMWare, 2 cas, 3 KVM, 4 novadocker, 5 ironic)  Only ironic (5) is supported



    "MANAGE_IP":"",//Please enter Manage Network IP address of the compute node



    "INSPECTION_IP":"",//Please enter Inspection Network IP address of the compute node



    "PROVISION_IP":"",//Please enter Provision Network IP address of the compute node



    "TEN_NETWORK_MODE":"",//Please enter the Mode of Network(1 flat , 2 multitenant)

    "CONDUCTOR_GROUP":"", //Please enter the conductor_group of the compute node (eg: conductor_group001)

    "OS_CONTROLLER_IP":"",//Please enter the Manage Network IP address of the controller node (or vitrual IP if it's cluster)p



    "OS_CONTROLLER_IP_OUTER_NET":"",//Please enter the Public Network IP address of the controller node (or vitrual IP if it's cluster)



    "IS_CLUSTER":"",//Is the controller node a cluster environment?(1 yes, 2 no)



    "MATRIX_IP":"",//Please enter the IP address of the Matrix, for the configuration of chronyd server   //IP address of the chrony service



    "STORAGE_TYPE":"",//Please enter the cinder storage type (0 None, 1 Cloudstor, 2 lvm)

    "CINDER_AZ":"",//Please enter the cinder storage availability zone name (eg: cinder_az)

    "VOL_TYPE_OF_CLOUDSTOR":"",//Please enter the volume type of the CloudStor driver (0 iscsi)

    "IP_OF_CLOUDSTOR_HANDY":"",//Please enter the CloudStor handy IP address for communication with independent compute nodes (eg: 10.114.103.74)

    "USERNAME_OF_CLOUDSTOR":"",//Please enter the handy username of the CloudStor server (eg: admin)

    "PASSWORD_OF_CLOUDSTOR":"",//Please enter the handy password of the CloudStor server (eg: password)

    "NODEPOOL_NAME_OF_CLOUDSTOR":"",//Please enter the iSCSI block storage node pool name of the CloudStor server (eg: p0)

    "DISKPOOL_NAME_OF_CLOUDSTOR":"",//Please enter the iSCSI block storage disk pool name of the CloudStor server (eg: diskpool1)

    "DATAPOOL_NAME_OF_CLOUDSTOR":"",//Please enter the iSCSI block storage data pool name of the CloudStor server (eg: datapool1)

    "IP_OF_CLOUDSTOR_BLOCK_SERVICE":"",//Please enter the IP address of the CloudStor iSCSI block storage service, used for communication with bare metal storage networks (eg: 10.114.103.76)

    "DHCP_RANGE":"",//Please enter the dhcp range



    "DHCP_NETMASK":"",//Please enter the dhcp netmask (eg: 255.255.255.0)   Subnet mask for the DHCP service

    "BRIDGE_MAPPINGS":""//Please enter the multi-export config bridge_mappings according to the usage(eg: physnet2:vswitch2,physnet3:vswitch3)

}

  1. Execute the following command to run the install-compute-pike.sh script (ls: cannot access *.iso: No such file or directory CAN NOT find the PLAT ISO file. Please upload this file to the directory where the install-compute-pike.sh file is located. exit!.

[root@ironiccpn openstack-compute-standalone]# sh install-compute-pike.sh.

  1. Enter the required configuration:

Please enter the number of hypervisor type (0 qemu, 1 VMWare, 2 cas, 3 KVM, 4 novadocker, 5 ironic): 5

  Your choice of VMTTYPE is : [ 5 ] continue...

Please enter Manage Network IP address of the compute node(172.25.50.150): 172.25.50.150

  Input IP address is: 172.25.50.150 Verifying Connection....

  IP connection is OK

Please enter Inspection Network IP address of the compute node(172.25.50.150): 172.25.50.150

  Input IP address is: 172.25.50.150 Verifying Connection....

  IP connection is OK

Please enter Provision Network IP address of the compute node(172.25.50.150): 172.25.50.150

  Input IP address is: 172.25.50.150 Verifying Connection....

  IP connection is OK

Please enter the Mode of Network(1 flat , 2 mutitenant):1

Please enter the conductor_group of the compute node(eg: conductor_group001): conductor_group001

Please enter the Manage Network IP address of the controller node (or vitrual IP if it's cluster): 172.25.17.53

  Input IP address is: 172.25.17.53 Verifying Connection....

  IP connection is OK

Please enter the Public Network IP address of the controller node (or vitrual IP if it's cluster): 172.25.17.53

  Input IP address is: 172.25.17.53 Verifying Connection....

  IP connection is OK

Is the controller node a cluster environment?(1 yes, 2 no): 1

You have already confirmed the controller node you will connect is a Cluster mode!  continue....

Please enter the IP address of the Matrix, for the configuration of ntpd server: 172.25.17.50(enter the VIP in single-node mode)

  Input IP address is: 172.25.17.50 Verifying Connection....

  IP connection is OK

Please enter the cinder storage type (0 None, 1 CloudStor, 2 lvm): 1

Please enter the cinder storage availability zone (eg: cinder_az): cinder_az

Please enter the volume type of CloudStor driver (0 iscsi): 0

Please enter the IP of CloudStor handy (eg: 10.114.103.74): 10.114.103.74

Please enter the user name of CloudStor server (eg: admin): admin

Please enter the password of CloudStor server (eg: password): password

Please enter the node pool name of CloudStor server (eg: p0): p0

Please enter the disk pool name of CloudStor server (eg: diskpool1): diskpool1

Please enter the data pool name of CloudStor server (eg: datapool1): datapool1

Please enter the IP of CloudStor block service (eg: 10.114.103.76): 10.114.103.76

Please enter the dhcp range (eg: 172.25.50.100,172.25.50.200): 172.25.50.151,172.25.50.160

Please enter the dhcp netmask (eg: 255.255.255.0): 255.255.240.0

Please enter the multi-export config bridge_mappings according to the usage(eg: physnet2:vswitch2,physnet3:vswitch3): vxlan:ironic

To delete the previous word, press Ctrl + W.



Enter information in the script as follows:

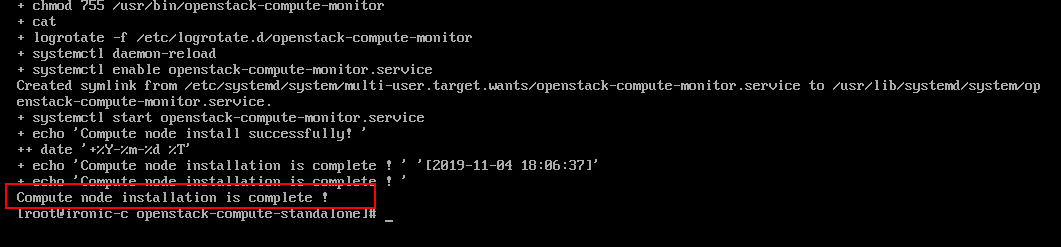

Script execution succeeded when the information shown in the following figure occurs.



  1. Restart the os-ironic container from the system after you run the script.

  1. For the system to interoperate with CloudStor ISCSI storage, see the related CloudStor configuration guide to complete required configuration after you run the script.

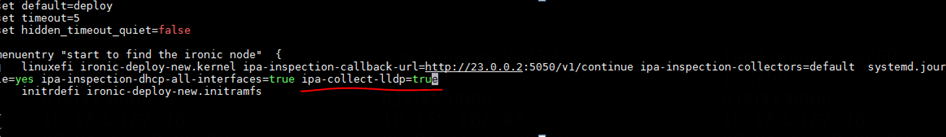

  1. In the multitenancy scenario where the bare metal server boots in UEFI mode, edit the /tftpboot/EFI/centos/grub-find.cfg configuration file by adding ipa-collect-lldp=true to the end of the line that starts with linuxefi.



To configure bare metal service when the PXE-enabled port on the bare metal server and the bare metal compute node belong to different subnets, see "Network planning when the PXE-enabled port on the bare metal server and the bare metal compute node belong to different subnets."



Restrictions and guidelines

  1. Run the following script in the /openstack-compute-standalone/upgrade directory of a compute node after that compute node is upgraded or re-deployed if you upgrade the system from a single AZ environment to a multi-AZ environment:

sh upgrade_conductor_group.sh [conductor_group](optional. If you do not specify conductor_group, the value is default_conductor_group by default)



sh upgrade_conductor_group.sh [conductor_group](specify the same value as that for conductor_group when you run the install-compute-pike.sh script, for example, conductor_group1)



You must following the instructions to set the [conductor_group] parameter.

  1. To add a bare metal compute node to a system that already has a bare metal compute node, first upgrade that compute node and then install the new compute node.

  1. After deploying or upgrading the compute node, restart the ironic pod in the system.

To avoid bare metal instance exceptions, you must restart the pod in three minutes after you run the sh upgrade_conductor_group.sh [conductor_group] script. For how to restore a bare metal instance, see "Bare metal nodes."

kubectl  delete  pod  -n  cloudos-iaas        os-ironic-5bfbcb7d9f-c977z



You can specify one conductor_group for one compute node. Multiple bare metal compute nodes must use the same network model. For example, if the network model for one compute node is flat, the network model for another compute node must be multitenant.

If you deploy multiple compute nodes, make sure each compute node has a unique host name and conductor_group value.
