About H3C Workspace

H3C Workspace desktop management software is a desktop virtualization solution developed based on virtual desktop infrastructure (VDI), intelligent desktop virtualization (IDV), and virtual OS infrastructure (VOI). With this software, you can move virtual desktop components including applications, OSs, and user data to a managed data center in the cloud for unified management and control. Users can access a desktop operating system from a thin client, fat client, mobile client, or PC as if they were using their own PC.

H3C Workspace desktop management software can be deployed in office, education (also called learning space), and hybrid office and education scenarios. The following figures show the typical architectures for the office and education scenarios, respectively.

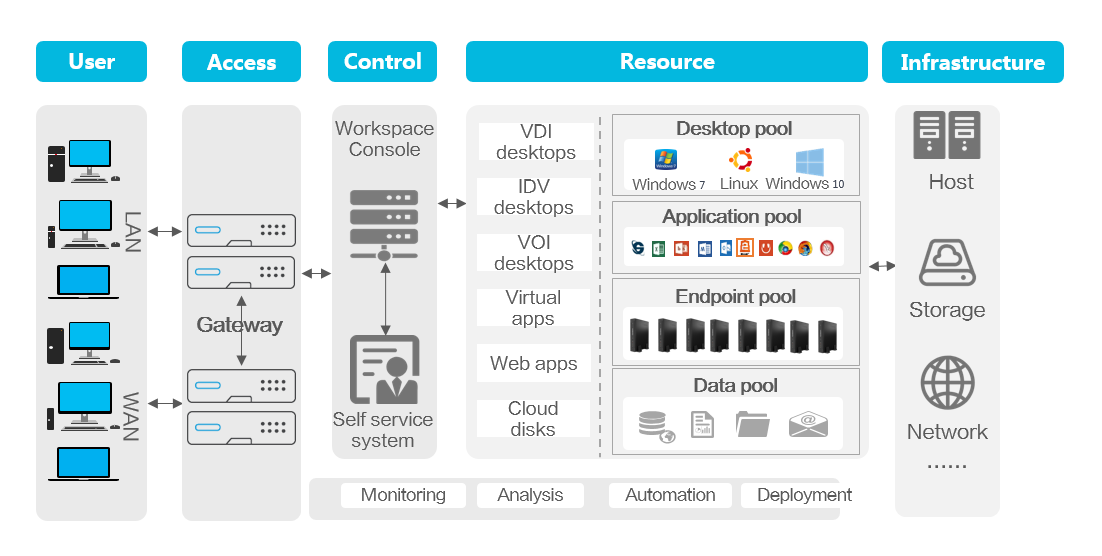

Figure-1 H3C Workspace architecture (office scenario)

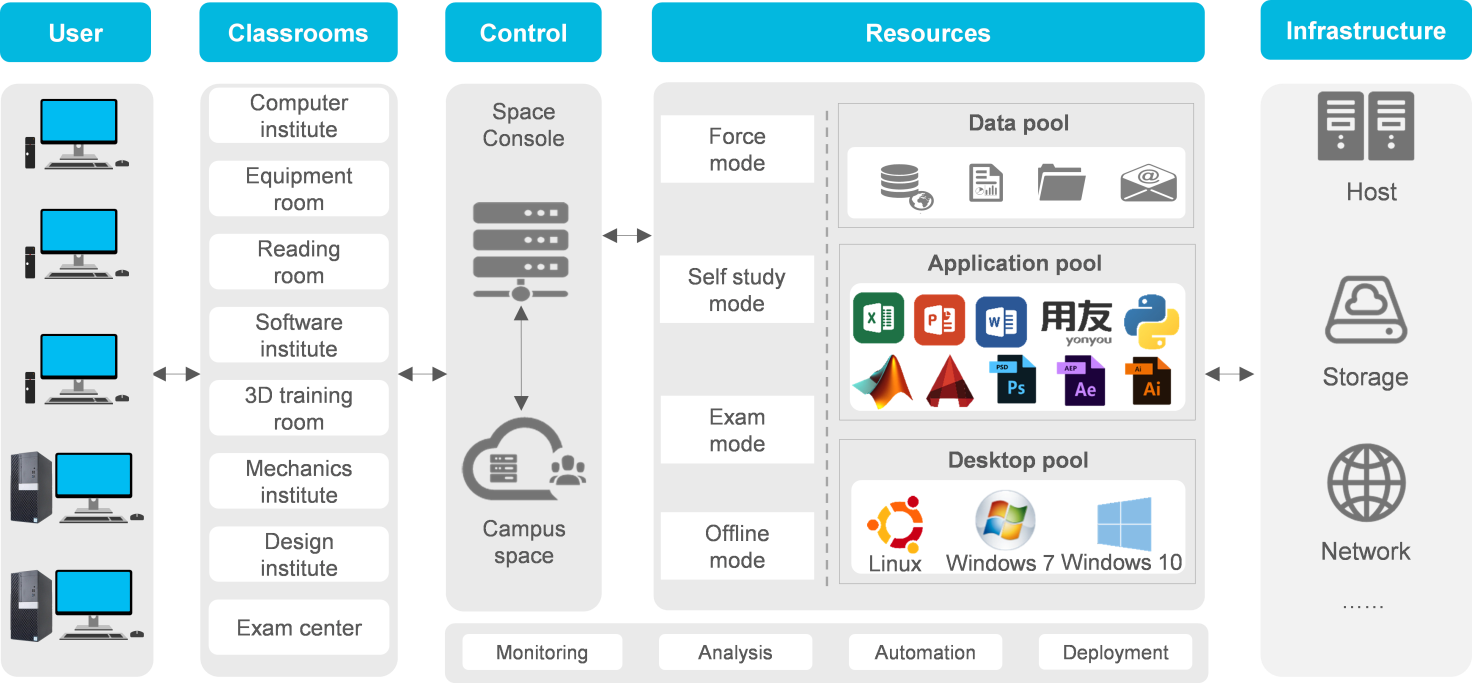

Figure-2 H3C Workspace architecture (education scenario)



H3C Space Console is located at the controller layer to manage the entire system. With Space Console, you can move virtualized desktop components including applications, OSs, and user data to a managed data center in the cloud for unified management and control. Depending on the application scenario, Space Console supports different endpoint types.

• Office scenario—Allows access to a cloud desktop or application from VDI, IDV, or VOI endpoints.

• Education scenario—Allows access to a class desktop from VDI or VOI endpoints for high-load services such as education, 3D modeling, and video processing.

Figure-3 describes the endpoint types supported by Space Console in the office and education scenarios.

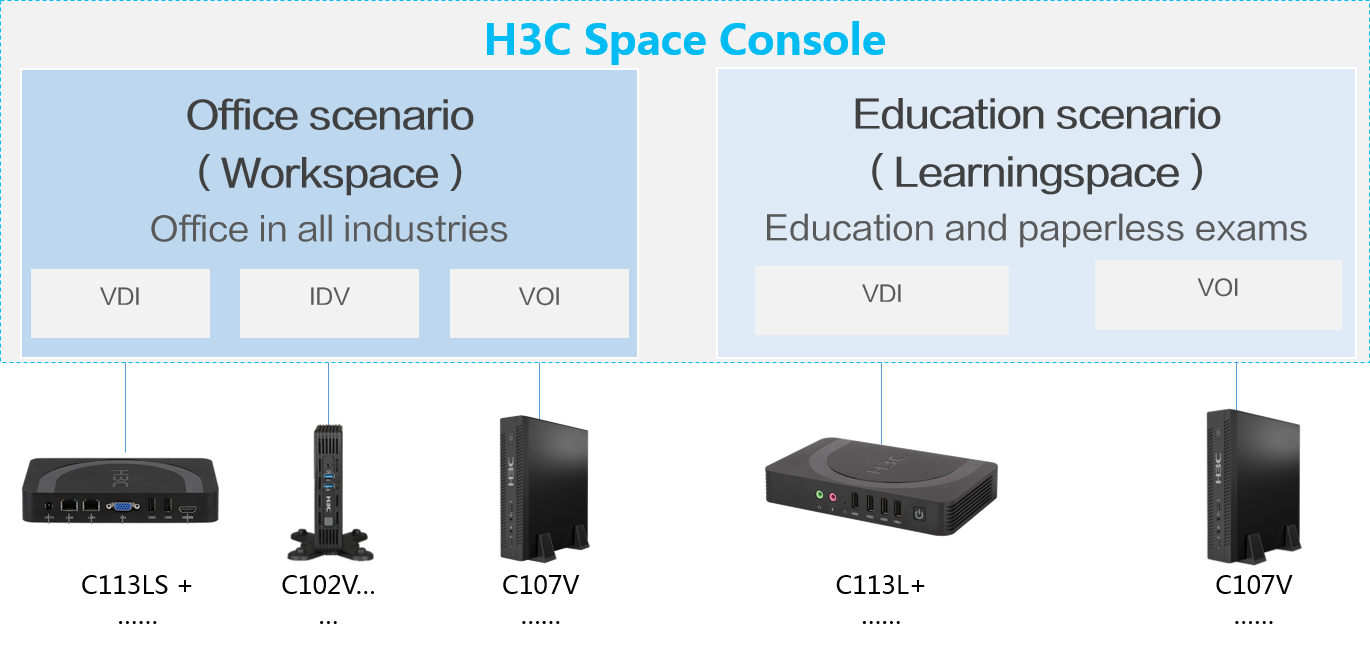

Figure-3 Endpoint type supported by Space Console
