CLI方式：在安全策略中引用APT防御策略典型配置

使用版本

本举例是在T5030的R9900版本版本上进行配置和验证的。

组网需求

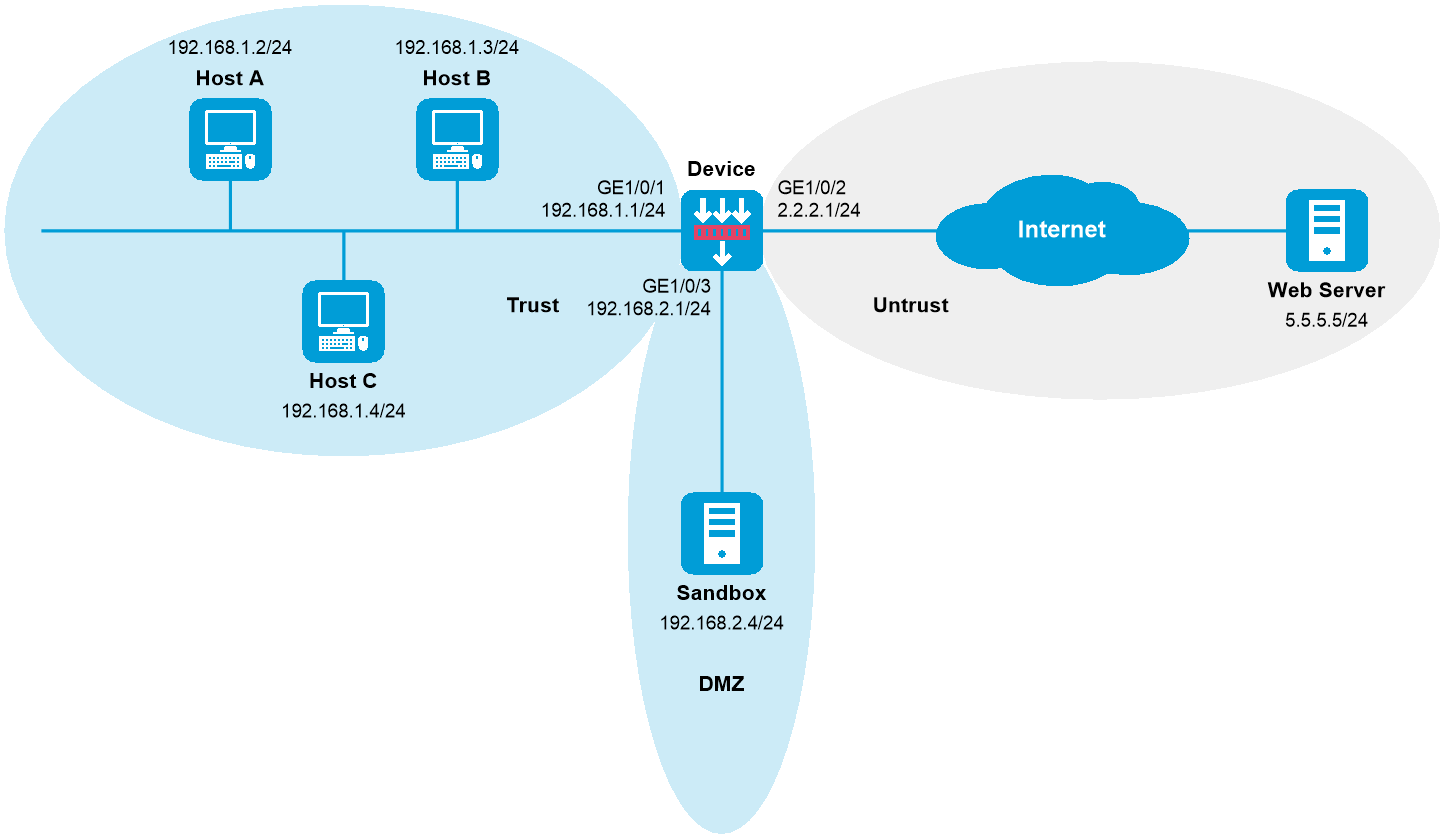

如下图所示，Device分别通过Trust安全域和Untrust安全域与局域网和Internet相连。企业内网中部署了沙箱，且沙箱与Device路由可达。现需要Device与沙箱联动，保护内网用户免受APT攻击，当沙箱检测到APT攻击时，对攻击流量执行阻断操作。

图-1 在安全策略中引用APT防御策略配置组网图

注意事项

APT防御业务会占用较多的系统资源，仅建议内存在2GB以上的设备启用，其他设备请谨慎启用。

配置步骤

  1. 配置接口IP地址

    # 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

    <Device> system-view

    [Device] interface gigabitethernet 1/0/1

    [Device-GigabitEthernet1/0/1] ip address 192.168.1.1 255.255.255.0

    [Device-GigabitEthernet1/0/1] quit

    请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

  2. 配置静态路由

    本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。

    # 请根据组网图中规划的信息，配置静态路由，本举例假设到达外网Web Server的下一跳IP地址为2.2.2.2，实际使用中请以具体组网情况为准，具体配置步骤如下。

    [Device] ip route-static 5.5.5.0 24 2.2.2.2

  3. 配置接口加入安全域

    # 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

    [Device] security-zone name trust

    [Device-security-zone-Trust] import interface gigabitethernet 1/0/1

    [Device-security-zone-Trust] quit

    [Device] security-zone name untrust

    [Device-security-zone-Untrust] import interface gigabitethernet 1/0/2

    [Device-security-zone-Untrust] quit

    [Device] security-zone name dmz

    [Device-security-zone-DMZ] import interface gigabitethernet 1/0/3

    [Device-security-zone-DMZ] quit

  4. 配置沙箱联动功能

    [Device] sandbox

    [Device-sandbox] sandbox-address 192.168.2.4

    [Device-sandbox] username admin

    [Device-sandbox] password simple 123456abc

    [Device-sandbox] linkage enable

    [Device-sandbox] linkage try

  5. 配置APT防御策略

    # 创建一个名称为apt1的APT防御策略，并配置需要送往沙箱检测的应用层协议为HTTP、文件类型为PE、文件传输方向为upload。

    [Device] apt policy apt1

    [Device-apt-policy-apt1] application type http

    [Device-apt-policy-apt1] file-type pe

    [Device-apt-policy-apt1] file-direction upload

    [Device-apt-policy-apt1] quit

  6. 配置DPI应用profile引用APT防御策略和防病毒策略，具体配置步骤如下（本举例假设设备上已经配置了名称为antivirus1的防病毒策略，策略中将所有传输病毒文件的协议报文的动作设置为阻断。）

    # 创建名为sec的DPI应用profile，并在其中引用名称为apt1的APT防御策略和名称为antivirus1的防病毒策略。

    [Device] app-profile sec

    [Device-app-profile-sec] apt apply policy apt1

    [Device-app-profile-sec] anti-virus apply policy antivirus1 mode protect

    [Device-app-profile-sec] quit

  7. 配置安全策略

    • 配置名称为trust-untrust的安全策略规则，使内网用户可以访问外网，并对交互报文进行APT防御

      [Device] security-policy ip

      [Device-security-policy-ip] rule name trust-untrust

      [Device-security-policy-ip-10-trust-untrust] source-zone trust

      [Device-security-policy-ip-10-trust-untrust] source-ip-subnet 192.168.1.0 24

      [Device-security-policy-ip-10-trust-untrust] destination-zone untrust

      [Device-security-policy-ip-10-trust-untrust] action pass

      [Device-security-policy-ip-10-trust-untrust] profile sec

      [Device-security-policy-ip-10-trust-untrust] quit

    • 配置名称为sandboxlocalout的安全策略规则，使设备可将待检测流量上送到沙箱服务器进行检测

      [Device-security-policy-ip] rule name sandboxlocalout

      [Device-security-policy-ip-11-sandboxlocalout] source-zone local

      [Device-security-policy-ip-11-sandboxlocalout] destination-zone dmz

      [Device-security-policy-ip-11-sandboxlocalout] destination-ip-subnet 192.168.2.0 24

      [Device-security-policy-ip-11-sandboxlocalout] action pass

      [Device-security-policy-ip-11-sandboxlocalout] quit

    • 配置名称为sandboxlocalin的安全策略规则，使沙箱服务器可将检测结果下发到设备

      [Device-security-policy-ip] rule name sandboxlocalin

      [Device-security-policy-ip-12-sandboxlocalin] source-zone dmz

      [Device-security-policy-ip-12-sandboxlocalin] destination-zone local

      [Device-security-policy-ip-12-sandboxlocalin] source-ip-subnet 192.168.2.0 24

      [Device-security-policy-ip-12-sandboxlocalin] action pass

      [Device-security-policy-ip-12-sandboxlocalin] quit

    # 激活安全策略配置。

    [Device-security-policy-ip] accelerate enhanced enable

    [Device-security-policy-ip] quit

验证配置

以上配置生效后，Device将与沙箱联动，保护内网用户免受APT攻击，当沙箱检测到APT攻击时，对后续攻击流量执行阻断操作。

配置文件

Device

#

interface GigabitEthernet1/0/1

ip address 192.168.1.1 255.255.255.0

#

interface GigabitEthernet1/0/2

ip address 2.2.2.1 255.255.255.0

#

interface GigabitEthernet1/0/3

ip address 192.168.2.1 255.255.255.0

#

security-zone name Trust

import interface GigabitEthernet1/0/1

#

security-zone name DMZ

import interface GigabitEthernet1/0/3

#

security-zone name Untrust

import interface GigabitEthernet1/0/2

#

ip route-static 5.5.5.0 24 2.2.2.2

#

apt policy apt1

application type http

file-direction upload

file-type pe

#

app-profile sec

anti-virus apply policy antivirus1 mode protect

apt apply policy apt1

#

sandbox

sandbox-address 192.168.2.4

username admin

password simple 123456abc

linkage enable

file exe max-size 2048

file zip max-size 2048

file office max-size 2048

file pdf max-size 2048

file picture max-size 500

file web max-size 500

file video max-size 2048

file other max-size 2048

#

security-policy ip

accelerate enhanced enable

rule 0 name trust-untrust

action pass

profile sec

source-zone trust

destination-zone untrust

source-ip-subnet 192.168.1.0 255.255.255.0

rule 1 name sandboxlocalout

action pass

source-zone local

destination-zone dmz

destination-ip-subnet 192.168.2.0 255.255.255.0

rule 2 name sandboxlocalin

action pass

source-zone dmz

destination-zone local

source-ip-subnet 192.168.2.0 255.255.255.0

#
