CLI方式：IPsec over L2TP典型配置（国密算法）

使用版本

本举例是在F5000-AI-55-G的E9900版本上进行配置和验证的。

组网需求

如下图所示，用户接入之前，在LAC和LNS之间采用LAC-Auto-Initiated模式建立L2TP隧道。用户接入后，通过已经建立的L2TP隧道访问公司总部。同时在LAC和LNS之间建立一个IPsec隧道，对数据流进行IPsec安全保护。

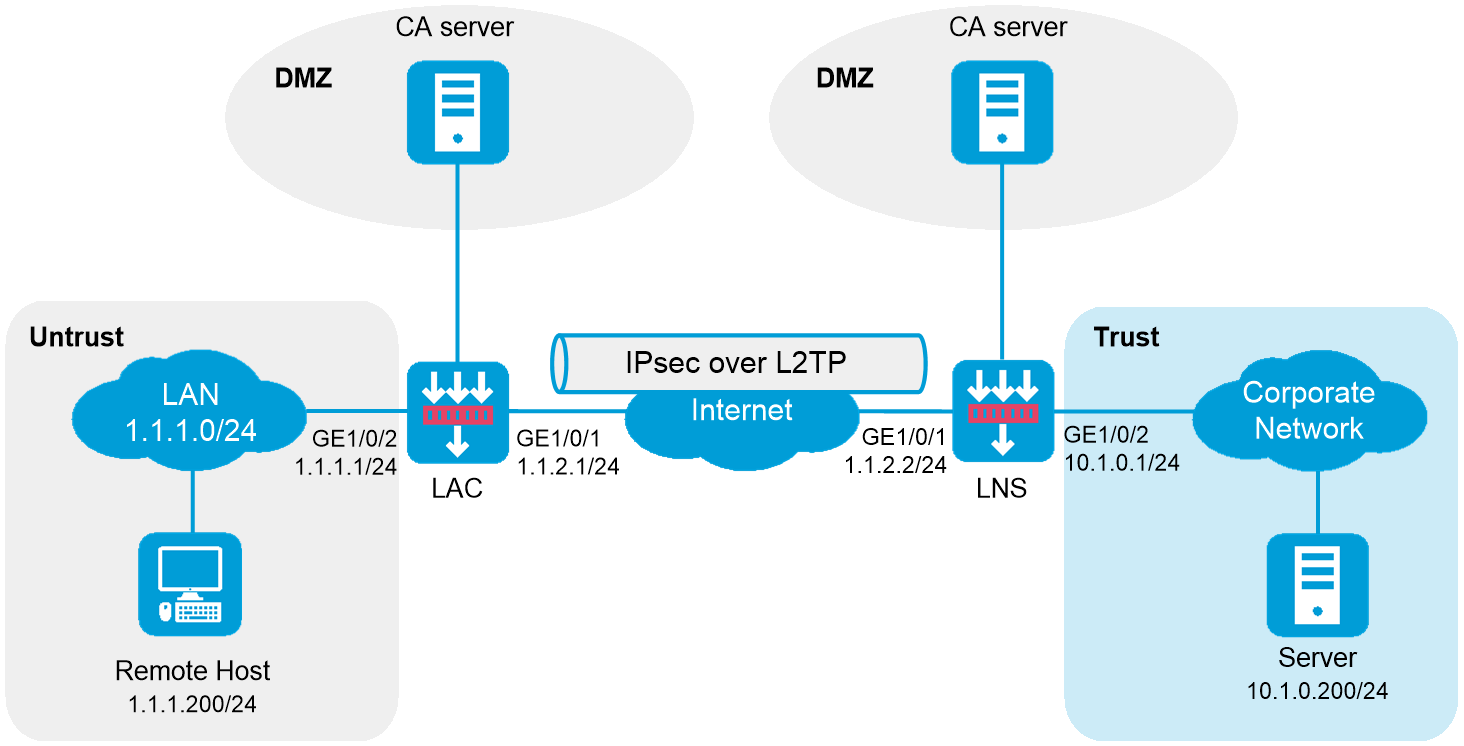

图-1 IPsec over L2TP典型配置组网图

配置步骤

配置LAC

在开始下面的配置之前，假设已完成如下配置：LAC已获取到CA证书ca.cer和服务器证书server.pfx。

配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<LAC> system-view

[LAC] interface gigabitethernet 1/0/1

[LAC-GigabitEthernet1/0/1] ip address 1.1.2.1 255.255.255.0

[LAC-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

定义需要保护的数据流

# 配置IPv4高级ACL 3101，定义要保护由1.1.1.200去往10.1.0.200的数据流。

[LAC] acl advanced 3101

[LAC-acl-ipv4-adv-3101] rule permit ip source 1.1.1.200 0.0.0.0 destination 10.1.0.200 0.0.0.0

[LAC-acl-ipv4-adv-3101] quit

配置IPsec安全提议，协商封装报文使用的各种安全协议

# 创建IPsec安全提议，两端配置的安全提议参数需要完全相同，具体配置步骤如下。

[LAC] ipsec transform-set tran1

[LAC-ipsec-transform-set-tran1] encapsulation-mode tunnel

[LAC-ipsec-transform-set-tran1] protocol esp

[LAC-ipsec-transform-set-tran1] esp encryption-algorithm sm4-cbc

[LAC-ipsec-transform-set-tran1] esp authentication-algorithm sm3

[LAC-ipsec-transform-set-tran1] quit

配置PKI实体，设置PKI实体的身份信息

[LAC] pki entity entity1

[LAC-pki-entity-entity1] common-name lac

[LAC-pki-entity-entity1] quit

配置PKI域，约定PKI证书申请的相关信息

[LAC] pki domain domain1

[LAC-pki-domain-domain1] public-key rsa general name sm2-1

[LAC-pki-domain-domain1] undo crl check enable

[LAC-pki-domain-domain1] quit

[LAC] pki import domain domain1 der ca filename ca.cer

[LAC] pki import domain domain1 p12 local filename server.pfx

配置IKE提议，定义双方进行IKE协商所需的安全参数

[LAC] ike proposal 10

[LAC-ike-proposal-10] authentication-method sm2-de

[LAC-ike-proposal-10] authentication-algorithm sm3

[LAC-ike-proposal-10] encryption-algorithm sm4-cbc

[LAC-ike-proposal-10] quit

配置IKE profile，约定建立IKE SA所需的安全参数

[LAC] ike profile profile1

[LAC-ike-profile-profile1] exchange-mode gm-main

[LAC-ike-profile-profile1] certificate domain domain1

[LAC-ike-profile-profile1] proposal 10

[LAC-ike-profile-profile1] local-identity address 192.168.0.10

[LAC-ike-profile-profile1] match remote identity address 192.168.0.1 255.255.255.0

[LAC-ike-profile-profile1] quit

配置IPsec安全策略，建立IPsec隧道，保护需要防护的数据流

# 创建一条手工方式的IPsec安全策略，引用需要保护数据流的ACL和所需的IPsec安全提议，指定对端的IP地址，具体配置步骤如下。

[LAC] ipsec policy map1 10 isakmp

[LAC-ipsec-policy-isakmp-map1-10] remote-address 192.168.0.1

[LAC-ipsec-policy-isakmp-map1-10] security acl 3101

[LAC-ipsec-policy-isakmp-map1-10] transform-set tran1

[LAC-ipsec-policy-isakmp-map1-10] ike-profile profile1

[LAC-ipsec-policy-isakmp-map1-10] quit

创建虚拟PPP接口Virtual-PPP 1，配置PPP用户的用户名为vpdnuser、密码为Hello，并配置PPP验证方式为PAP。同时在接口上应用IPsec安全策略，对接口上的流量进行保护

[LAC] interface virtual-ppp 1

[LAC-Virtual-PPP1] ip address ppp-negotiate

[LAC-Virtual-PPP1] ppp pap local-user vpdnuser password simple Hello

[LAC-Virtual-PPP1] ipsec apply policy map1

[LAC-Virtual-PPP1] quit

开启L2TP功能

[LAC] l2tp enable

创建LAC模式的L2TP组1，配置隧道本端名称为LAC，并指定LNS地址为1.1.2.2

[LAC] l2tp-group 1 mode lac

[LAC-l2tp1] tunnel name LAC

[LAC-l2tp1] lns-ip 1.1.2.2

启用隧道验证功能，并设置隧道验证密钥为example

[LAC-l2tp1] tunnel authentication

[LAC-l2tp1] tunnel password simple example

[LAC-l2tp1] quit

触发LAC发起L2TP隧道建立请求

[LAC] interface virtual-ppp 1

[LAC-Virtual-PPP1] l2tp-auto-client l2tp-group 1

[LAC-Virtual-PPP1] quit

配置接口加入安全域

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[LAC] security-zone name untrust

[LAC-security-zone-Untrust] import interface virtual-ppp 1

[LAC-security-zone-Untrust] import interface gigabitethernet 1/0/2

[LAC-security-zone-Untrust] import interface gigabitethernet 1/0/1

[LAC-security-zone-Untrust] quit

配置安全策略

  1. 配置安全策略放行Untrust与Local安全域之间的流量

    # 配置名称为localout的安全策略规则，使LAC可以向LNS发送报文，具体配置步骤如下。

    [LAC] security-policy ip

    [LAC-security-policy-ip] rule name localout

    [LAC-security-policy-ip-1-localout] source-zone local

    [LAC-security-policy-ip-1-localout] destination-zone untrust

    [LAC-security-policy-ip-1-localout] source-ip-host 1.1.2.1

    [LAC-security-policy-ip-1-localout] destination-ip-host 1.1.2.2

    [LAC-security-policy-ip-1-localout] action pass

    [LAC-security-policy-ip-1-localout] quit

    # 配置名称为localin的安全策略规则，使LAC可以接收和处理来自LNS的报文，具体配置步骤如下。

    [LAC-security-policy-ip] rule name localin

    [LAC-security-policy-ip-2-localin] source-zone untrust

    [LAC-security-policy-ip-2-localin] destination-zone local

    [LAC-security-policy-ip-2-localin] source-ip-host 1.1.2.2

    [LAC-security-policy-ip-2-localin] destination-ip-host 1.1.2.1

    [LAC-security-policy-ip-2-localin] action pass

    [LAC-security-policy-ip-2-localin] quit

  2. 配置安全策略放行Host与Server之间的流量

    # 配置名称为untrust的安全策略规则，使Host访问Server和Server访问Host的报文可通，具体配置步骤如下。

    [LAC-security-policy-ip] rule name untrust

    [LAC-security-policy-ip-3-untrust] source-zone untrust

    [LAC-security-policy-ip-3-untrust] destination-zone untrust

    [LAC-security-policy-ip-3-untrust] action pass

    [LAC-security-policy-ip-3-untrust] quit

    [LAC-security-policy-ip] quit

请根据组网图中规划的信息，配置静态路由

本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。配置静态路由，访问公司总部的报文将通过L2TP隧道转发，具体配置步骤如下。

[LAC] ip route-static 10.1.0.0 24 virtual-ppp 1

配置LNS

在开始下面的配置之前，假设已完成如下配置：LNS已获取到CA证书ca.cer和服务器证书server.pfx。

配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<LNS> system-view

[LNS] interface gigabitethernet 1/0/1

[LNS-GigabitEthernet1/0/1] ip address 1.1.2.2 255.255.255.0

[LNS-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

定义需要保护的数据流

# 配置IPv4高级ACL 3101，定义要保护由10.1.0.200去往1.1.1.200的数据流。

[LNS] acl advanced 3101

[LNS-acl-ipv4-adv-3101] rule permit ip source 10.1.0.200 0.0.0.0 destination 1.1.1.200 0.0.0.0

[LNS-acl-ipv4-adv-3101] quit

配置IPsec安全提议，协商封装报文使用的各种安全协议

[LNS] ipsec transform-set tran1

[LNS-ipsec-transform-set-tran1] encapsulation-mode tunnel

[LNS-ipsec-transform-set-tran1] protocol esp

[LNS-ipsec-transform-set-tran1] esp encryption-algorithm sm4-cbc

[LNS-ipsec-transform-set-tran1] esp authentication-algorithm sm3

[LNS-ipsec-transform-set-tran1] quit

配置PKI实体，设置PKI实体的身份信息

[LNS] pki entity entity2

[LNS-pki-entity-entity2] common-name lns

[LNS-pki-entity-entity2] quit

配置PKI域，约定PKI证书申请的相关信息

[LNS] pki domain domain2

[LNS-pki-domain-domain2] public-key rsa general name sm2-1

[LNS-pki-domain-domain2] undo crl check enable

[LNS-pki-domain-domain2] quit

[LNS] pki import domain domain2 der ca filename ca.cer

[LNS] pki import domain domain2 p12 local filename server.pfx

配置IKE提议，定义双方进行IKE协商所需的安全参数

[LNS] ike proposal 10

[LNS-ike-proposal-10] authentication-method sm2-de

[LNS-ike-proposal-10] authentication-algorithm sm3

[LNS-ike-proposal-10] encryption-algorithm sm4-cbc

[LNS-ike-proposal-10] quit

配置IKE profile，约定建立IKE SA所需的安全参数

[LNS] ike profile profile1

[LNS-ike-profile-profile1] exchange-mode gm-main

[LNS-ike-profile-profile1] certificate domain domain2

[LNS-ike-profile-profile1] proposal 10

[LNS-ike-profile-profile1] local-identity address 192.168.0.1

[LNS-ike-profile-profile1] match remote identity address 192.168.0.10 255.255.255.0

[LNS-ike-profile-profile1] quit

配置IPsec安全策略，建立IPsec隧道，保护需要防护的数据流

# 创建一条手工方式的IPsec安全策略，引用需要保护数据流的ACL和所需的IPsec安全提议，指定对端的IP地址，具体配置步骤如下。

[LNS] ipsec policy use1 10 isakmp

[LNS-ipsec-policy-isakmp-use1-10] remote-address 192.168.0.10

[LNS-ipsec-policy-isakmp-use1-10] security acl 3101

[LNS-ipsec-policy-isakmp-use1-10] transform-set tran1

[LNS-ipsec-policy-isakmp-use1-10] ike-profile profile1

[LNS-ipsec-policy-isakmp-use1-10] quit

创建接口Virtual-Template1，配置VT口IP地址，PPP认证方式为PAP，并指定为Client端分配IP地址为192.168.0.10。同时在接口上应用IPsec安全策略，对接口上的流量进行保护

[LNS] interface virtual-template 1

[LNS-Virtual-Template1] ip address 192.168.0.1 24

[LNS-Virtual-Template1] ppp authentication-mode pap

[LNS-Virtual-Template1] remote address 192.168.0.10

[LNS-Virtual-Template1] ipsec apply policy use1

[LNS-Virtual-Template1] quit

创建本地PPP用户vpdnuser，设置密码为Hello

[LNS] local-user vpdnuser class network

[LNS-luser-network-vpdnuser] password simple Hello

[LNS-luser-network-vpdnuser] service-type ppp

[LNS-luser-network-vpdnuser] quit

配置ISP域system对PPP用户采用本地验证

[LNS] domain system

[LNS-isp-system] authentication ppp local

[LNS-isp-system] quit

开启L2TP功能

[LNS] l2tp enable

创建LNS模式的L2TP组1，配置隧道本端名称为LNS，指定接收呼叫的虚拟模板接口为VT1，并配置隧道对端名称为LAC

[LNS] l2tp-group 1 mode lns

[LNS-l2tp1] tunnel name LNS

[LNS-l2tp1] allow l2tp virtual-template 1 remote LAC

启用隧道验证功能，并设置隧道验证密钥为example

[LNS-l2tp1] tunnel authentication

[LNS-l2tp1] tunnel password simple example

[LNS-l2tp1] quit

配置接口加入安全域

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[LNS] security-zone name trust

[LNS-security-zone-Trust] import interface gigabitethernet 1/0/2

[LNS-security-zone-Trust] quit

[LNS] security-zone name untrust

[LNS-security-zone-Untrust] import interface Virtual-Template 1

[LNS-security-zone-Untrust] import interface gigabitethernet 1/0/1

[LNS-security-zone-Untrust] quit

配置安全策略

  1. 配置安全策略放行Untrust与Local安全域之间的流量

    # 配置名称为localout的安全策略规则，使LNS可以向LAC发送报文，具体配置步骤如下。

    [LNS] security-policy ip

    [LNS-security-policy-ip] rule name localout

    [LNS-security-policy-ip-1-localout] source-zone local

    [LNS-security-policy-ip-1-localout] destination-zone untrust

    [LNS-security-policy-ip-1-localout] source-ip-host 1.1.2.2

    [LNS-security-policy-ip-1-localout] destination-ip-host 1.1.2.1

    [LNS-security-policy-ip-1-localout] action pass

    [LNS-security-policy-ip-1-localout] quit

    # 配置名称为localin的安全策略规则，使LNS可以接收和处理来自LAC、Host的报文，具体配置步骤如下。

    [LNS-security-policy-ip] rule name localin

    [LNS-security-policy-ip-2-localin] source-zone untrust

    [LNS-security-policy-ip-2-localin] destination-zone local

    [LNS-security-policy-ip-2-localin] destination-ip-host 1.1.2.2

    [LNS-security-policy-ip-2-localin] action pass

    [LNS-security-policy-ip-2-localin] quit

  2. 配置安全策略放行Server与Host 之间的流量

    # 配置名称为trust-untrust的安全策略规则，使Server与Host的报文可通，具体配置步骤如下。

    [LNS-security-policy-ip] rule name trust-untrust

    [LNS-security-policy-ip-3-trust-untrust] source-zone trust

    [LNS-security-policy-ip-3-trust-untrust] source-zone untrust

    [LNS-security-policy-ip-3-trust-untrust] destination-zone trust

    [LNS-security-policy-ip-3-trust-untrust] destination-zone untrust

    [LNS-security-policy-ip-3-trust-untrust] action pass

    [LNS-security-policy-ip-3-trust-untrust] quit

    [LNS-security-policy-ip] quit

请根据组网图中规划的信息，配置静态路由

本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。

请根据组网图中规划的信息，配置静态路由，本举例假设到达远端主机网络下一跳IP地址为192.168.0.10，实际使用中请以具体组网情况为准，具体配置步骤如下。

[LNS] ip route-static 1.1.1.0 24 192.168.0.10

Remote host侧的配置

Remote host上应将LAC设置为网关。

验证配置

IPsec验证

可通过如下显示信息查看到LAC和LNS上的IKE提议

[LAC] display ike proposal

Priority Authentication Authentication Encryption Diffie-Hellman Duration

method algorithm algorithm group (seconds)

----------------------------------------------------------------------------

10 SM2-DE SM3 SM4-CBC Group 1 86400

default PRE-SHARED-KEY SHA1 DES-CBC Group 1 86400

[LNS] display ike proposal

Priority Authentication Authentication Encryption Diffie-Hellman Duration

method algorithm algorithm group (seconds)

----------------------------------------------------------------------------

10 SM2-DE SM3 SM4-CBC Group 1 86400

default PRE-SHARED-KEY SHA1 DES-CBC Group 1 86400

可通过如下显示信息查看到LAC上IKE第一阶段协商成功后生成的IKE SA

[LAC] display ike sa

Flags:

RD--READY RL--REPLACED FD-FADING RK-REKEY

ID Profile Remote Flag Remote-Type Remote-ID

--------------------------------------------------------------------------------

1 profile1 192.168.0.1 RD IPV4_ADDR 192.168.0.1

可通过如下显示信息查看到IKE第二阶段协商生成的IPsec SA

[LAC] display ipsec sa

-------------------------------

Interface: Virtual-PPP1

-------------------------------

-----------------------------

IPsec policy: map1

Sequence number: 10

Mode: ISAKMP

-----------------------------

Tunnel id: 0

Encapsulation mode: tunnel

Perfect Forward Secrecy:

Inside VPN:

Extended Sequence Numbers enable: N

Traffic Flow Confidentiality enable: N

Path MTU: 1456

Tunnel:

local address/port: 192.168.0.10/500

remote address/port: 192.168.0.1/500

Flow:

sour addr: 1.1.1.200/255.255.255.0 port: 0 protocol: ip

dest addr: 10.1.0.200/255.255.255.0 port: 0 protocol: ip

[Inbound ESP SAs]

SPI: 1451246811 (0x568044db)

Connection ID: 90194313219

Transform set: ESP-ENCRYPT-SM4-CBC ESP-AUTH-SM3

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843200/3484

Max received sequence-number:

Anti-replay check enable: Y

Anti-replay window size: 64

UDP encapsulation used for NAT traversal: N

Status: Active

[Outbound ESP SAs]

SPI: 2692887942 (0xa0823586)

Connection ID: 64424509441

Transform set: ESP-ENCRYPT-SM4-CBC ESP-AUTH-SM3

SA duration (kilobytes/sec): 1843200/3600

SA remaining duration (kilobytes/sec): 1843200/3484

Max sent sequence-number:

UDP encapsulation used for NAT traversal: N

Status: Active

LNS上也会产生相应的IKE SA和IPsec SA，查看方式与LAC相同，此处略

L2TP验证

在LNS侧，通过命令display l2tp tunnel可查看建立的L2TP隧道

[LNS] display l2tp tunnel

LocalTID RemoteTID State Sessions RemoteAddress RemotePort RemoteName

52525 33375 Established 1 1.1.2.1 1701 LAC

在LNS侧，通过命令display l2tp session可查看建立的L2TP会话

[LNS] display l2tp session

LocalSID RemoteSID LocalTID State

21073 11183 52525 Established

在Remote host上Ping公司总部内的服务器10.1.0.200，可以成功Ping通

C:\> ping 10.1.0.200

Pinging 10.1.0.200 with 32 bytes of data:

Reply from 10.1.0.200: bytes=32 time<1ms TTL=253

Reply from 10.1.0.200: bytes=32 time<1ms TTL=253

Reply from 10.1.0.200: bytes=32 time<1ms TTL=253

Reply from 10.1.0.200: bytes=32 time<1ms TTL=253

Ping statistics for 10.1.0.200:

Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

Minimum = 0ms, Maximum = 0ms, Average = 0ms

配置文件

LAC

#

interface Virtual-PPP1

ppp pap local-user vpdnuser password simple Hello

ip address ppp-negotiate

l2tp-auto-client l2tp-group 1

ipsec apply policy map1

#

interface GigabitEthernet1/0/1

port link-mode route

ip address 1.1.2.1 255.255.255.0

#

interface GigabitEthernet1/0/2

port link-mode route

ip address 1.1.1.1 255.255.255.0

#

security-zone name Untrust

import interface GigabitEthernet1/0/1

import interface GigabitEthernet1/0/2

import interface virtual-ppp1

#

ip route-static 10.1.0.0 24 virtual-ppp 1

#

acl advanced 3101

rule 0 permit ip source 1.1.1.200 0 destination 10.1.0.200 0

#

pki domain domain1

public-key rsa general name sm2-1

undo crl check enable

#

pki import domain domain1 der ca filename ca.cer

pki import domain domain1 p12 local filename server.pfx

#

pki entity entity1

common-name lac

#

ipsec transform-set tran1

encapsulation-mode tunnel

protocol esp

esp encryption-algorithm sm4-cbc

esp authentication-algorithm sm3

#

ipsec policy map1 10 isakmp

transform-set tran1

security acl 3101

remote-address 192.168.0.1

ike-profile profile1

#

l2tp enable

#

l2tp-group 1 mode lac

lns-ip 1.1.2.2

tunnel name LAC

tunnel authentication

tunnel password simple example

#

ike profile profile1

certificate domain domain1

exchange-mode gm-main

local-identity address 192.168.0.10

match remote identity address 192.168.0.1 255.255.255.0

proposal 10

#

ike proposal 10

authentication-method sm2-de

encryption-algorithm sm4-cbc

authentication-algorithm sm3

#

security-policy ip

rule 0 name localout

action pass

source-zone local

destination-zone untrust

source-ip-host 1.1.2.1

destination-ip-host 1.1.2.2

rule 1 name localin

action pass

source-zone untrust

destination-zone local

source-ip-host 1.1.2.2

destination-ip-host 1.1.2.1

rule 2 name untrust

action pass

source-zone untrust

destination-zone untrust

#

LNS

#

interface Virtual-Template1

ppp authentication-mode pap

remote address 192.168.0.10

ip address 192.168.0.1 255.255.255.0

ipsec apply policy use1

#

interface GigabitEthernet1/0/1

port link-mode route

ip address 1.1.2.2 255.255.255.0

#

interface GigabitEthernet1/0/2

port link-mode route

ip address 10.1.0.1 255.255.255.0

#

security-zone name Trust

import interface GigabitEthernet1/0/2

#

security-zone name Untrust

import interface GigabitEthernet1/0/1

import interface Virtual-Template1

#

ip route-static 1.1.1.0 24 192.168.0.10

#

acl advanced 3101

rule 0 permit ip source 10.1.0.200 0 destination 1.1.1.200 0

#

local-user vpdnuser class network

password simple Hello

service-type ppp

#

pki domain domain2

public-key rsa general name sm2-1

undo crl check enable

#

pki import domain domain2 der ca filename ca.cer

pki import domain domain2 p12 local filename server.pfx

#

pki entity entity2

common-name lns

#

ipsec transform-set tran1

encapsulation-mode tunnel

protocol esp

esp encryption-algorithm sm4-cbc

esp authentication-algorithm sm3

#

ipsec policy use1 10 isakmp

transform-set tran1

security acl 3101

remote-address 192.168.0.10

ike-profile profile1

#

l2tp enable

#

l2tp-group 1 mode lns

allow l2tp virtual-template 1 remote LAC

tunnel name LNS

tunnel authentication

tunnel password simple example

#

ike profile profile1

certificate domain domain2

exchange-mode gm-main

local-identity address 192.168.0.1

match remote identity address 192.168.0.10 255.255.255.0

proposal 10

#

ike proposal 10

authentication-method sm2-de

encryption-algorithm sm4-cbc

authentication-algorithm sm3

#

security-policy ip

rule 0 name localout

action pass

source-zone local

destination-zone untrust

source-ip-host 1.1.2.2

destination-ip-host 1.1.2.1

rule 1 name localin

action pass

source-zone untrust

destination-zone local

destination-ip-host 1.1.2.2

rule 2 name trust-untrust

action pass

source-zone trust

source-zone untrust

destination-zone untrust

destination-zone trust

#

domain system

authentication ppp local

#
