CLI方式：网关与网关之间采用IKE方式建立保护IPv6报文的IPsec隧道典型配置

使用版本

本举例是在M9000-AI-E8的R9071版本上进行配置和验证的。

组网需求

如下图所示，在Device A和Device B之间建立一条IPsec隧道，对Host A所在的子网（333::/64）与Host B所在的子网（555::/64）之间的数据流进行安全保护。具体要求如下：

封装形式为隧道模式。

安全协议采用ESP协议。

加密算法采用128比特的AES，认证算法采用HMAC-SHA1。

IKE协商方式建立IPsec SA。

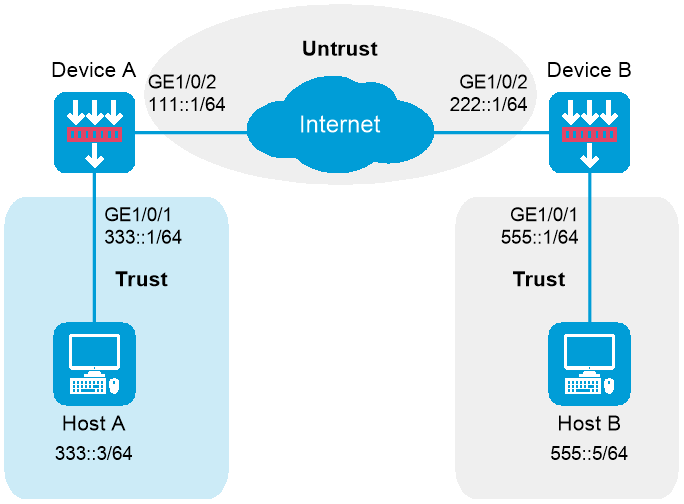

图-1 保护IPv6报文的IPsec配置组网图

‌

配置步骤

配置Device A

配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<DeviceA> system-view

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] ipv6 address 333::1/64

[DeviceA-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

配置静态路由

本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。

# 请根据组网图中规划的信息，配置静态路由，本举例假设下一跳IP地址为111::2，实际使用中请以具体组网情况为准，具体配置步骤如下。

[DeviceA] ipv6 route-static 555::0 64 111::2

[DeviceA] ipv6 route-static 222::0 64 111::2

配置接口加入安全域。

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[DeviceA] security-zone name trust

[DeviceA-security-zone-Trust] import interface gigabitethernet 1/0/1

[DeviceA-security-zone-Trust] quit

[DeviceA] security-zone name untrust

[DeviceA-security-zone-Untrust] import interface gigabitethernet 1/0/2

[DeviceA-security-zone-Untrust] quit

配置安全策略

配置安全策略放行Untrust与Local安全域之间的流量，用于设备之间可以建立IPsec隧道。

# 配置名称为ipseclocalout的安全策规则，使Device A可以向Device B发送IPsec隧道协商报文，具体配置步骤如下。

[DeviceA] security-policy ipv6

[DeviceA-security-policy-ipv6] rule name ipseclocalout

[DeviceA-security-policy-ipv6-1-ipseclocalout] source-zone local

[DeviceA-security-policy-ipv6-1-ipseclocalout] destination-zone untrust

[DeviceA-security-policy-ipv6-1-ipseclocalout] source-ip-host 111::1

[DeviceA-security-policy-ipv6-1-ipseclocalout] destination-ip-host 222::1

[DeviceA-security-policy-ipv6-1-ipseclocalout] action pass

[DeviceA-security-policy-ipv6-1-ipseclocalout] quit

# 配置名称为ipseclocalin的安全策略规则，使Device A可以接收和处理来自Device B的IPsec隧道协商报文，具体配置步骤如下。

[DeviceA-security-policy-ipv6] rule name ipseclocalin

[DeviceA-security-policy-ipv6-2-ipseclocalin] source-zone untrust

[DeviceA-security-policy-ipv6-2-ipseclocalin] destination-zone local

[DeviceA-security-policy-ipv6-2-ipseclocalin] source-ip-host 222::1

[DeviceA-security-policy-ipv6-2-ipseclocalin] destination-ip-host 111::1

[DeviceA-security-policy-ipv6-2-ipseclocalin] action pass

[DeviceA-security-policy-ipv6-2-ipseclocalin] quit

配置安全策略放行Host A与Host B之间的流量

# 配置名称为trust-untrust的安全策略规则，使Host A访问Host B的报文可通，具体配置步骤如下。

[DeviceA-security-policy-ipv6] rule name trust-untrust

[DeviceA-security-policy-ipv6-3-trust-untrust] source-zone trust

[DeviceA-security-policy-ipv6-3-trust-untrust] destination-zone untrust

[DeviceA-security-policy-ipv6-3-trust-untrust] source-ip-subnet 333::1 64

[DeviceA-security-policy-ipv6-3-trust-untrust] destination-ip-subnet 555::1 64

[DeviceA-security-policy-ipv6-3-trust-untrust] action pass

[DeviceA-security-policy-ipv6-3-trust-untrust] quit

# 配置名称为untrust-trust的安全策略规则，使Host B访问Host A的报文可通，具体配置步骤如下。

[DeviceA-security-policy-ipv6] rule name untrust-trust

[DeviceA-security-policy-ipv6-4-untrust-trust] source-zone untrust

[DeviceA-security-policy-ipv6-4-untrust-trust] destination-zone trust

[DeviceA-security-policy-ipv6-4-untrust-trust] source-ip-subnet 555::1 64

[DeviceA-security-policy-ipv6-4-untrust-trust] destination-ip-subnet 333::1 64

[DeviceA-security-policy-ipv6-4-untrust-trust] action pass

[DeviceA-security-policy-ipv6-4-untrust-trust] quit

[DeviceA-security-policy-ipv6] quit

定义需要保护的数据流

# 配置一个IPv6高级ACL，定义要保护由子网333::/64去往子网555::/64的数据流。

[DeviceA] acl ipv6 advanced 3101

[DeviceA-acl-ipv6-adv-3101] rule permit ipv6 source 333::0 64 destination 555::0 64

[DeviceA-acl-ipv6-adv-3101] quit

配置IPsec安全提议，协商封装报文使用的各种安全协议

# 创建IPsec安全提议，两端配置的安全提议参数需要完全相同，具体配置步骤如下。

[DeviceA] ipsec transform-set tran1

[DeviceA-ipsec-transform-set-tran1] encapsulation-mode tunnel

[DeviceA-ipsec-transform-set-tran1] protocol esp

[DeviceA-ipsec-transform-set-tran1] esp encryption-algorithm aes-cbc-128

[DeviceA-ipsec-transform-set-tran1] esp authentication-algorithm sha1

[DeviceA-ipsec-transform-set-tran1] quit

配置IKE keychain，约定通信双方使用的密钥信息

# 创建并配置IKE keychain，协商双方配置的预共享密钥必须完全相同，具体配置步骤如下。

[DeviceA] ike keychain keychain1

[DeviceA-ike-keychain-keychain1] pre-shared-key address ipv6 222::1 64 key simple 123456TESTplat&!

[DeviceA-ike-keychain-keychain1] quit

配置IKE profile，约定建立IKE SA所需的安全参数

[DeviceA] ike profile profile1

[DeviceA-ike-profile-profile1] keychain keychain1

[DeviceA-ike-profile-profile1] match remote identity address ipv6 222::1 64

[DeviceA-ike-profile-profile1] quit

配置IPsec安全策略，建立IPsec隧道，保护需要防护的数据流

# 创建一条IKE协商方式的IPsec安全策略，引用需要保护数据流的ACL和所需的IPsec安全提议，指定本端和对端的IP地址，引用IKE profile，具体配置步骤如下。

[DeviceA] ipsec ipv6-policy map1 10 isakmp

[DeviceA-ipsec-ipv6-policy-isakmp-map1-10] security acl ipv6 3101

[DeviceA-ipsec-ipv6-policy-isakmp-map1-10] transform-set tran1

[DeviceA-ipsec-ipv6-policy-isakmp-map1-10] local-address ipv6 111::1

[DeviceA-ipsec-ipv6-policy-isakmp-map1-10] remote-address ipv6 222::1

[DeviceA-ipsec-ipv6-policy-isakmp-map1-10] ike-profile profile1

[DeviceA-ipsec-ipv6-policy-isakmp-map1-10] quit

在接口上应用IPsec安全策略，对接口上的流量进行保护

# 在接口GigabitEthernet1/0/2上应用IPsec安全策略，具体配置步骤如下。

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] ipsec apply ipv6-policy map1

[DeviceA-GigabitEthernet1/0/2] quit

配置Device B

配置接口IP地址

# 根据组网图中规划的信息，配置各接口的IP地址，具体配置步骤如下。

<DeviceB> system-view

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] ipv6 address 555::1/64

[DeviceB-GigabitEthernet1/0/1] quit

请参考以上步骤配置其他接口的IP地址，具体配置步骤略。

配置静态路由

本举例仅以静态路由方式配置路由信息。实际组网中，请根据具体情况选择相应的路由配置方式。

# 请根据组网图中规划的信息，配置静态路由，本举例假设下一跳IP地址为222::2，实际使用中请以具体组网情况为准，具体配置步骤如下。

[DeviceB] ipv6 route-static 333::0 64 222::2

[DeviceB] ipv6 route-static 111::0 64 222::2

配置接口加入安全域。

# 请根据组网图中规划的信息，将接口加入对应的安全域，具体配置步骤如下。

[DeviceB] security-zone name trust

[DeviceB-security-zone-Trust] import interface gigabitethernet 1/0/1

[DeviceB-security-zone-Trust] quit

[DeviceB] security-zone name untrust

[DeviceB-security-zone-Untrust] import interface gigabitethernet 1/0/2

[DeviceB-security-zone-Untrust] quit

配置安全策略

配置安全策略放行Untrust与Local安全域之间的流量，用于设备之间可以建立IPsec隧道。

# 配置名称为ipseclocalout的安全策规则，使Device B可以向Device A发送IPsec隧道协商报文，具体配置步骤如下。

[DeviceB] security-policy ipv6

[DeviceB-security-policy-ipv6] rule name ipseclocalout

[DeviceB-security-policy-ipv6-1-ipseclocalout] source-zone local

[DeviceB-security-policy-ipv6-1-ipseclocalout] destination-zone untrust

[DeviceB-security-policy-ipv6-1-ipseclocalout] source-ip-host 222::1

[DeviceB-security-policy-ipv6-1-ipseclocalout] destination-ip-host 111::1

[DeviceB-security-policy-ipv6-1-ipseclocalout] action pass

[DeviceB-security-policy-ipv6-1-ipseclocalout] quit

# 配置名称为ipseclocalin的安全策略规则，使Device B可以接收和处理来自Device A的IPsec隧道协商报文，具体配置步骤如下。

[DeviceB-security-policy-ipv6] rule name ipseclocalin

[DeviceB-security-policy-ipv6-2-ipseclocalin] source-zone untrust

[DeviceB-security-policy-ipv6-2-ipseclocalin] destination-zone local

[DeviceB-security-policy-ipv6-2-ipseclocalin] source-ip-host 111::1

[DeviceB-security-policy-ipv6-2-ipseclocalin] destination-ip-host 222::1

[DeviceB-security-policy-ipv6-2-ipseclocalin] action pass

[DeviceA-security-policy-ipv6-2-ipseclocalin] quit

配置安全策略放行Host B与Host A之间的流量

# 配置名称为trust-untrust的安全策略规则，使Host A访问Host B的报文可通，具体配置步骤如下。

[DeviceB-security-policy-ipv6] rule name trust-untrust

[DeviceB-security-policy-ipv6-3-trust-untrust] source-zone trust

[DeviceB-security-policy-ipv6-3-trust-untrust] destination-zone untrust

[DeviceB-security-policy-ipv6-3-trust-untrust] source-ip-subnet 333::1 64

[DeviceB-security-policy-ipv6-3-trust-untrust] destination-ip-subnet 555::1 64

[DeviceB-security-policy-ipv6-3-trust-untrust] action pass

[DeviceB-security-policy-ipv6-3-trust-untrust] quit

# 配置名称为untrust-trust的安全策略规则，使Host B访问Host A的报文可通，具体配置步骤如下。

[DeviceB-security-policy-ipv6] rule name untrust-trust

[DeviceB-security-policy-ipv6-4-untrust-trust] source-zone untrust

[DeviceB-security-policy-ipv6-4-untrust-trust] destination-zone trust

[DeviceB-security-policy-ipv6-4-untrust-trust] source-ip-subnet 555::1 64

[DeviceB-security-policy-ipv6-4-untrust-trust] destination-ip-subnet 333::1 64

[DeviceB-security-policy-ipv6-4-untrust-trust] action pass

[DeviceB-security-policy-ipv6-4-untrust-trust] quit

[DeviceB-security-policy-ipv6] quit

定义需要保护的数据流

# 配置一个IPv6高级ACL，定义要保护由子网555::/64去往子网333::/64的数据流。

[DeviceB] acl ipv6 advanced 3101

[DeviceB-acl-ipv6-adv-3101] rule permit ipv6 source 555::/64 destination 333::/64

[DeviceB-acl-ipv6-adv-3101] quit

配置IPsec安全提议，协商封装报文使用的各种安全协议

# 创建IPsec安全提议，两端配置的安全提议参数需要完全相同，具体配置步骤如下。

[DeviceB] ipsec transform-set tran1

[DeviceB-ipsec-transform-set-tran1] encapsulation-mode tunnel

[DeviceB-ipsec-transform-set-tran1] protocol esp

[DeviceB-ipsec-transform-set-tran1] esp encryption-algorithm aes-cbc-128

[DeviceB-ipsec-transform-set-tran1] esp authentication-algorithm sha1

[DeviceB-ipsec-transform-set-tran1] quit

配置IKE keychain，约定通信双方使用的密钥信息

# 创建并配置IKE keychain，协商双方配置的预共享密钥必须完全相同，具体配置步骤如下。

[DeviceB] ike keychain keychain1

[DeviceB-ike-keychain-keychain1] pre-shared-key address ipv6 111::1 64 key simple 123456TESTplat&!

[DeviceB-ike-keychain-keychain1] quit

配置IKE profile，约定建立IKE SA所需的安全参数

[DeviceB] ike profile profile1

[DeviceB-ike-profile-profile1] keychain keychain1

[DeviceB-ike-profile-profile1] match remote identity address ipv6 111::1 64

[DeviceB-ike-profile-profile1] quit

配置IPsec安全策略，建立IPsec隧道，保护需要防护的数据流

# 创建一条IKE协商方式的IPsec安全策略，引用需要保护数据流的ACL和所需的IPsec安全提议，指定本端和对端的IP地址，引用IKE profile，具体配置步骤如下。

[DeviceB] ipsec ipv6-policy use1 10 isakmp

[DeviceB-ipsec-ipv6-policy-isakmp-use1-10] security acl ipv6 3101

[DeviceB-ipsec-ipv6-policy-isakmp-use1-10] transform-set tran1

[DeviceB-ipsec-ipv6-policy-isakmp-use1-10] local-address ipv6 222::1

[DeviceB-ipsec-ipv6-policy-isakmp-use1-10] remote-address ipv6 111::1

[DeviceB-ipsec-ipv6-policy-isakmp-use1-10] ike-profile profile1

[DeviceB-ipsec-ipv6-policy-isakmp-use1-10] quit

在接口上应用IPsec安全策略，对接口上的流量进行保护

# 在接口GigabitEthernet1/0/2上应用IPsec安全策略，具体配置步骤如下。

[DeviceB] interface gigabitethernet 1/0/2

[DeviceB-GigabitEthernet1/0/2] ipsec apply ipv6-policy use1

[DeviceB-GigabitEthernet1/0/2] quit

验证配置

# 以上配置完成后，当Device A和Device B之间有子网333::/64与子网555::/64之间的报文通过时，将触发IKE进行IPsec SA的协商。IKE成功协商出IPsec SA后，子网333::/64与子网555::/64之间数据流的传输将受到IPsec SA的保护。可通过以下显示查看到协商生成的IPsec SA。

[DeviceA] display ipsec sa

-------------------------------

Interface: GigabitEthernet1/0/2

-------------------------------

-----------------------------

IPsec policy: map1

Sequence number: 10

Alisa: map1-10

Mode: ISAKMP

-----------------------------

Tunnel id: 0

Encapsulation mode: tunnel

Perfect Forward Secrecy:

Inside VPN:

Extended Sequence Numbers enable: N

Traffic Flow Confidentiality enable: N

Transmitting entity: Initiator

Path MTU: 1423

Tunnel:

local address/port: 111::1/500

remote address/port: 222::1/500

Flow:

sour addr: 111::1/0 port: 0 protocol: ipv6

dest addr: 222::1/0 port: 0 protocol: ipv6

[Inbound ESP SAs]

SPI: 3769702703 (0xe0b1192f)

Connection ID: 1

Transform set: ESP-ENCRYPT-AES-CBC-128 ESP-AUTH-SHA1

SA duration (kilobytes/sec): 3000/28800

SA remaining duration (kilobytes/sec): 2300/797

Max received sequence-number: 1

Anti-replay check enable: N

Anti-replay window size:

UDP encapsulation used for NAT traversal: N

Status: Active

[Outbound ESP SAs]

SPI: 3840956402 (0xe4f057f2)

Connection ID: 2

Transform set: ESP-ENCRYPT-AES-CBC-128 ESP-AUTH-SHA1

SA duration (kilobytes/sec): 3000/28800

SA remaining duration (kilobytes/sec): 2312/797

Max sent sequence-number: 1

UDP encapsulation used for NAT traversal: N

Status: Active

# Device B上也会产生相应的IPsec SA来保护IPv6报文，查看方式与Device A同，此处略。

配置文件

Device A

interface GigabitEthernet1/0/1

ipv6 address 333::1/64

interface GigabitEthernet1/0/2

ipv6 address 111::1/64

ipsec apply ipv6-policy map1

security-zone name Trust

import interface GigabitEthernet1/0/1

security-zone name Untrust

import interface GigabitEthernet1/0/2

ipv6 route-static 222:: 64 111::2

ipv6 route-static 555:: 64 111::2

acl ipv6 advanced 3101

rule 0 permit ipv6 source 333::/64 destination 555::/64

ipsec transform-set tran1

encapsulation-mode tunnel

protocol esp

esp encryption-algorithm aes-cbc-128

esp authentication-algorithm sha1

ipsec ipv6-policy map1 10 isakmp

transform-set tran1

security acl ipv6 3101

local-address ipv6 111::1

remote-address ipv6 222::1

ike-profile profile1

ike profile profile1

keychain keychain1

match remote identity address ipv6 222::1 64

ike keychain keychain1

pre-shared-key address ipv6 222::1 64 key simple 123456TESTplat&!

security-policy ipv6

rule 0 name ipseclocalout

action pass

source-zone local

destination-zone untrust

source-ip-host 111::1

destination-ip-host 222::1

rule 1 name ipseclocalin

action pass

source-zone untrust

destination-zone local

source-ip-host 222::1

destination-ip-host 111::1

rule 2 name trust-untrust

action pass

source-zone trust

destination-zone untrust

source-ip-subnet 333::/64

destination-ip-subnet 555::/64

rule 3 name untrust-trust

action pass

source-zone untrust

destination-zone trust

source-ip-subnet 555::/64

destination-ip-subnet 333::/64

Device B

interface GigabitEthernet1/0/1

ipv6 address 555::1/64

interface GigabitEthernet1/0/2

ipv6 address 222::1/64

ipsec apply ipv6-policy use1

security-zone name Trust

import interface GigabitEthernet1/0/1

security-zone name Untrust

import interface GigabitEthernet1/0/2

ipv6 route-static 111:: 64 222::2

ipv6 route-static 333:: 64 222::2

acl ipv6 advanced 3101

rule 0 permit ipv6 source 555::/64 destination 333::/64

ipsec transform-set tran1

encapsulation-mode tunnel

protocol esp

esp encryption-algorithm aes-cbc-128

esp authentication-algorithm sha1

ipsec ipv6-policy use1 10 isakmp

transform-set tran1

security acl ipv6 3101

local-address ipv6 222::1

remote-address ipv6 111::1

ike-profile profile1

ike profile profile1

keychain keychain1

match remote identity address ipv6 111::1 64

ike keychain keychain1

pre-shared-key address ipv6 111::1 64 key simple 123456TESTplat&!

security-policy ipv6

rule 0 name ipseclocalout

action pass

source-zone local

destination-zone untrust

source-ip-host 222::1

destination-ip-host 111::1

rule 1 name ipseclocalin

action pass

source-zone untrust

destination-zone local

source-ip-host 111::1

destination-ip-host 222::1

rule 2 name trust-untrust

action pass

source-zone trust

destination-zone untrust

source-ip-subnet 333::/64

destination-ip-subnet 555::/64

rule 3 name untrust-trust

action pass

source-zone untrust

destination-zone trust

source-ip-subnet 555::/64

destination-ip-subnet 333::/64
