CLI方式：透明直路部署典型配置

使用版本

本举例是在F1090的R8660P33版本上进行配置和验证的。

组网需求

如下图所示，Host A、Host B和Server通过接入交换机Switch、Device和路由器Router与Internet通信，应用需求如下：

Switch和Device透传Host、Server与Internet之间的流量。

Router做Host A、Host B和Server的网关，查路由表转发Host、Server与Internet之间的流量。

Router作为Host的DHCP服务器，为Host动态分配网段为10.1.1.0/24的IP地址，DNS服务器地址为20.1.1.15，网关地址为10.1.1.1。

Router拥有20.1.1.1/24和20.1.1.2/24两个外网IP地址，内部网络中10.1.1.0/24网段的Host使用20.1.1.2/24地址访问Internet。

Server的内网IP地址是10.1.1.2，Server使用外网IP地址20.1.1.2的21端口对Internet提供FTP服务。

Device通过安全策略控制匹配的报文进行转发，对不匹配的报文丢弃处理。

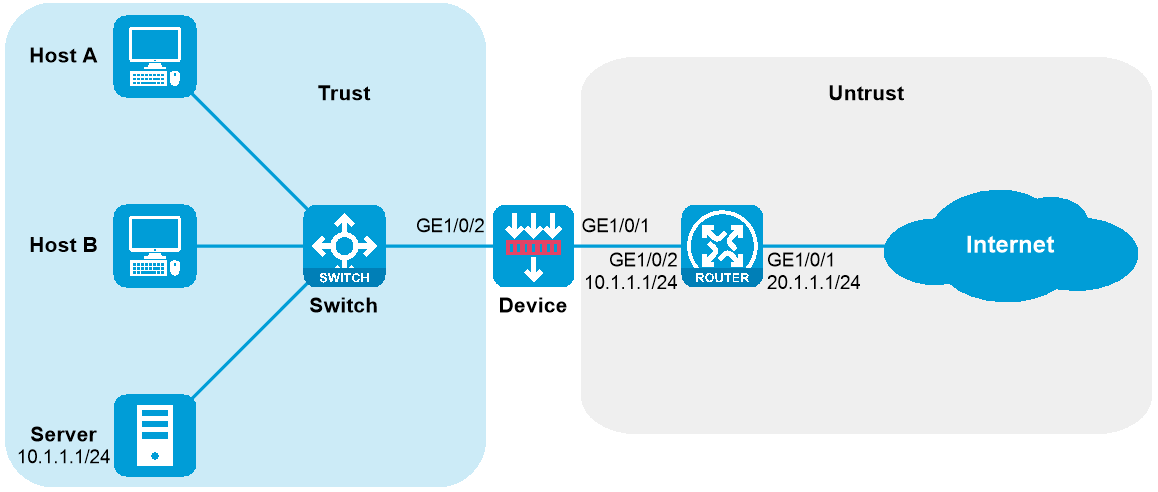

图-1 Device透明直路部署组网图

‌

配置步骤

配置Device

配置接口的工作模式

# 切换GigabitEthernet1/0/1和GigabitEthernet1/0/2的工作模式为二层。

<Device> system-view

[Device] interface range gigabitethernet 1/0/1 gigabitethernet 1/0/2

[Device-if-range] port link-mode bridge

[Device-if-range] quit

配置接口加入安全域

# 将GigabitEthernet1/0/1的VLAN1加入安全域Untrust，GigabitEthernet1/0/2的VLAN1加入安全域Trust。

[Device] security-zone name untrust

[Device-security-zone-Untrust] import interface gigabitethernet 1/0/1 vlan 1

[Device-security-zone-Untrust] quit

[Device] security-zone name trust

[Device-security-zone-Trust] import interface gigabitethernet 1/0/2 vlan 1

[Device-security-zone-Trust] quit

配置安全策略

# 配置安全策略允许trust安全域访问untrust安全域。

[Device] security-policy ip

[Device-security-policy-ip] rule name trust-untrust

[Device-security-policy-ip-0-trust-untrust] action pass

[Device-security-policy-ip-0-trust-untrust] source-zone trust

[Device-security-policy-ip-0-trust-untrust] destination-zone untrust

[Device-security-policy-ip-0-trust-untrust] quit

# 配置安全策略允许untrust安全域访问trust安全域。

[Device-security-policy-ip] rule name untrust-trust

[Device-security-policy-ip-1-untrust-trust] action pass

[Device-security-policy-ip-1-untrust-trust] source-zone untrust

[Device-security-policy-ip-1-untrust-trust] destination-zone trust

[Device-security-policy-ip-1-untrust-trust] quit

[Device-security-policy-ip] quit

配置Router

配置接口IP

# 配置接口GigabitEthernet1/0/1和GigabitEthernet1/0/2的IP地址。

<Router> system-view

[Router] interface gigabitethernet 1/0/1

[Router-GigabitEthernet1/0/1] ip address 20.1.1.1 24

[Router-GigabitEthernet1/0/1] quit

[Router] interface gigabitethernet 1/0/2

[Router-GigabitEthernet1/0/2] ip address 10.1.1.1 24

[Router-GigabitEthernet1/0/2] quit

配置静态路由

# 配置默认路由指导上行流量转发（此处下一跳以20.1.1.3为例，请以实际情况为准）。

[Router] ip route-static 0.0.0.0 0 20.1.1.3

配置DHCP服务

# 配置DHCP地址池1，用来为10.1.1.0/24网段内的客户端分配IP地址和网络配置参数。

[Router] dhcp server ip-pool 1

[Router-dhcp-pool-1] network 10.1.1.0 24

[Router-dhcp-pool-1] gateway-list 10.1.1.1

[Router-dhcp-pool-1] dns-list 20.1.1.15

[Router-dhcp-pool-1] forbidden-ip 10.1.1.2

[Router-dhcp-pool-1] quit

# 开启DHCP服务。

[Router] dhcp enable

配置NAT服务

# 配置地址组0，包含外网地址20.1.1.2。

[Router] nat address-group 0

[Router-address-group-0] address 20.1.1.2 20.1.1.2

[Router-address-group-0] quit

# 配置ACL 2000，仅允许对内部网络中10.1.1.0/24网段的用户报文进行地址转换。

[Router] acl basic 2000

[Router-acl-ipv4-basic-2000] rule permit source 10.1.1.0 0.0.0.255

[Router-acl-ipv4-basic-2000] quit

# 在接口GigabitEthernet1/0/1上配置出方向动态地址转换，允许使用地址组0中的地址对匹配ACL 2000的报文进行源地址转换，并在转换过程中使用端口信息。

[Router] interface gigabitethernet 1/0/1

[Router-GigabitEthernet1/0/1] nat outbound 2000 address-group 0

# 配置内部FTP服务器，允许外网主机使用地址20.1.1.2、端口号21访问内网10.1.1.2的FTP服务器。

[Router-GigabitEthernet1/0/1] nat server protocol tcp global 20.1.1.2 21 inside 10.1.1.2 ftp

[Router-GigabitEthernet1/0/1] quit

验证配置

# Host A、Host B上ping测试Internet的连通性，可以ping通Internet地址20.1.1.3。

C:\>ping 20.1.1.3

Pinging 20.1.1.3 with 32 bytes of data:

Reply from 20.1.1.3: bytes=32 time=3ms TTL=254

Reply from 20.1.1.3: bytes=32 time=2ms TTL=254

Reply from 20.1.1.3: bytes=32 time=1ms TTL=254

Reply from 20.1.1.3: bytes=32 time=2ms TTL=254

Ping statistics for 20.1.1.3:

Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

Minimum = 1ms, Maximum = 3ms, Average = 2ms

# 在Device上检查会话表，存在Host与20.1.1.3的会话表。

[Device]display session table ipv4

Slot 1:

Initiator:

Source IP/port: 10.1.1.6/240

Destination IP/port: 20.1.1.3/2048

DS-Lite tunnel peer: -

VPN instance/VLAN ID/Inline ID: -/1/-

Protocol: ICMP(1)

Inbound interface: GigabitEthernet1/0/2

Source security zone: Trust

Initiator:

Source IP/port: 10.1.1.7/237

Destination IP/port: 20.1.1.3/2048

DS-Lite tunnel peer: -

VPN instance/VLAN ID/Inline ID: -/1/-

Protocol: ICMP(1)

Inbound interface: GigabitEthernet1/0/2

Source security zone: Trust

Total sessions found: 3

# 在Router上检查NAT会话的简要信息。

[Router]display nat session brief

Slot 1:

Protocol Source IP/port Destination IP/port Global IP/port

ICMP 10.1.1.6/229 20.1.1.3/2048 20.1.1.2/0

ICMP 10.1.1.7/229 20.1.1.3/2048 20.1.1.2/0

Total sessions found: 3

配置文件

Device

interface GigabitEthernet1/0/1

port link-mode bridge

interface GigabitEthernet1/0/2

port link-mode bridge

security-zone name Trust

import interface GigabitEthernet1/0/2 vlan 1

security-zone name Untrust

import interface GigabitEthernet1/0/1 vlan 1

security-policy ip

rule 0 name trust-untrust

action pass

source-zone trust

destination-zone untrust

rule 1 name untrust-trust

action pass

source-zone untrust

destination-zone trust

Router

nat address-group 0

address 20.1.1.2 20.1.1.2

dhcp enable

dhcp server ip-pool 1

gateway-list 10.1.1.1

network 10.1.1.0 mask 255.255.255.0

dns-list 20.1.1.15

forbidden-ip 10.1.1.2

interface GigabitEthernet1/0/1

ip address 20.1.1.1 255.255.255.0

nat outbound 2000 address-group 0

nat server protocol tcp global 20.1.1.2 21 inside 10.1.1.2 21

interface GigabitEthernet1/0/2

ip address 10.1.1.1 255.255.255.0

ip route-static 0.0.0.0 0 20.1.1.3

acl basic 2000

rule 0 permit source 10.1.1.0 0.0.0.255
