Connect SR-IOV passthrough NICs to a VM

  1. On the top navigation bar, click Resources.

  1. From the left navigation pane, select Compute > Host Pool Name > Host Name > VM Name or Compute > Host Pool Name > Cluster Name > Host Name > VM Name.

  1. Click Edit.

  1. Click Add Hardware.

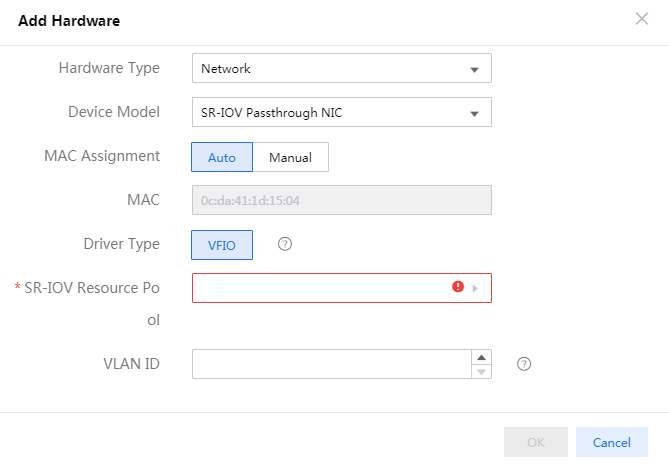

  1. Select Network as the hardware type, select SR-IOV Passthrough NIC as the device model, select an SR-IOV resource pool, and enter a VLAN ID.



  1. Click OK.
